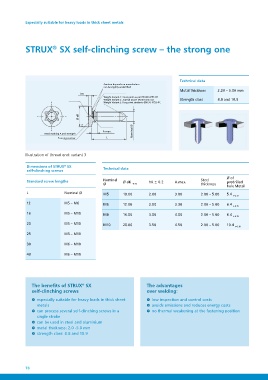

Especially suitable for heavy loads in thick sheet metals

STRUX® SX self-clinching screw – the strong one

Contour depends on manufacture Technical data

can be slightly underfilled Metal thickness 2.00 – 5.00 mm

hK

Weight Variant 1: Cone point as per EN ISO 4753 CH Strength class 8.8 and 10.9
Weight Variant 2: Journal as per EN ISO 4753 LD
Weight Variant 3: Dog point similar to EN ISO 4753-PC

ZØ dK
Head marking A and strength Nominal Ø
A max.
Pressing contour L

Illustration of thread end: variant 3 Technical data
Dimensions of STRUX® SX
self-clinching screws Nominal Ø dK -0.43 hK ± 0.2 A max. Steel Ø of
Standard screw lengths Ø thickness predrilled
L Nominal Ø 2.00 3.00 2.00 – 5.00 hole Metal
12 M5 – M6 M5 10.00 2.00 3.30 2.00 – 5.00 5.4 +0.12
16 M5 – M10 3.00 4.00 2.00 – 5.00 6.4 +0.15
20 M5 – M10 M6 12.00 3.50 4.50 2.00 – 5.00 8.4 +0.15
25 M5 – M10 10.4 +0.18
30 M6 – M10 M8 16.00
40 M6 – M10
M10 20.00

The benefits of STRUX® SX The advantages
self-clinching screws over welding:

especially suitable for heavy loads in thick sheet low inspection and control costs
metals avoids emissions and reduces energy costs
can process several self-clinching screws in a no thermal weakening at the fastening position
single stroke
can be used in steel and aluminium
metal thickness: 2.0 -5.0 mm
strength class: 8.8 and 10.9

04 78
