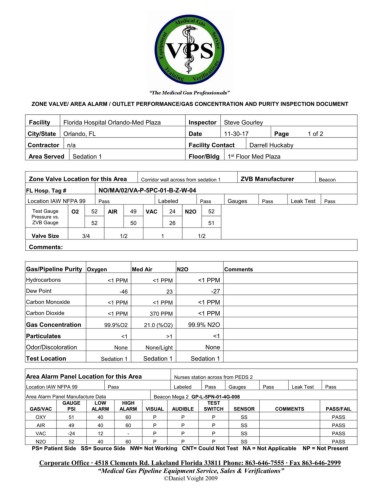

ZONE VALVE/ AREA ALARM / OUTLET PERFORMANCE/GAS CONCENTRATION AND PURITY INSPECTION DOCUMENT

Facility Florida Hospital Orlando-Med Plaza Inspector Steve Gourley
City/State Orlando, FL Date 11-30-17 Page 1 of 2
Contractor n/a Facility Contact Darrell Huckaby

Area Served Sedation 1 Floor/Bldg 1 Floor Med Plaza
st

Zone Valve Location for this Area Corridor wall across from sedation 1 ZVB Manufacturer Beacon

FL Hosp. Tag # NO/MA/02/VA-P-5PC-01-B-Z-W-04
Location IAW NFPA 99 Pass Labeled Pass Gauges Pass Leak Test Pass
Test Gauge O2 52 AIR 49 VAC 24 N2O 52
Pressure vs.
ZVB Gauge 52 50 26 51

Valve Size 3/4 1/2 1 1/2
Comments:

Gas/Pipeline Purity Oxygen Med Air N2O Comments
Hydrocarbons <1 PPM <1 PPM <1 PPM
Dew Point -46 23 -27
Carbon Monoxide <1 PPM <1 PPM <1 PPM
Carbon Dioxide <1 PPM 370 PPM <1 PPM

Gas Concentration 99.9%O2 21.0 (%O2) 99.9% N2O
Particulates <1 >1 <1
Odor/Discoloration None None/Light None

Test Location Sedation 1 Sedation 1 Sedation 1

Area Alarm Panel Location for this Area Nurses station across from PEDS 2

Location IAW NFPA 99 Pass Labeled Pass Gauges Pass Leak Test Pass
Area Alarm Panel Manufacture Data Beacon Mega 2 GP-L-5PN-01-4G-008
GAUGE LOW HIGH TEST
GAS/VAC PSI ALARM ALARM VISUAL AUDIBLE SWITCH SENSOR COMMENTS PASS/FAIL
OXY 51 40 60 P P P SS PASS
AIR 49 40 60 P P P SS PASS
VAC -24 12 - P P P SS PASS
N2O 52 40 60 P P P SS PASS
PS= Patient Side SS= Source Side NW= Not Working CNT= Could Not Test NA = Not Applicable NP = Not Present
