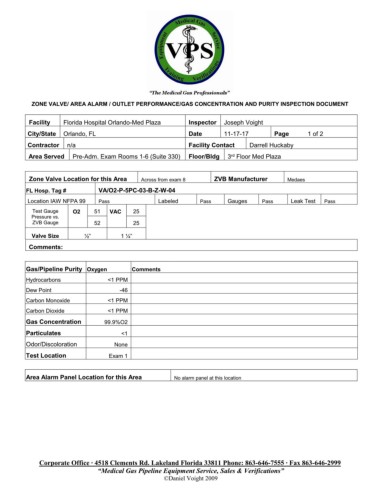

ZONE VALVE/ AREA ALARM / OUTLET PERFORMANCE/GAS CONCENTRATION AND PURITY INSPECTION DOCUMENT

Facility Florida Hospital Orlando-Med Plaza Inspector Joseph Voight
City/State Orlando, FL Date 11-17-17 Page 1 of 2
Contractor n/a Facility Contact Darrell Huckaby

Area Served Pre-Adm. Exam Rooms 1-6 (Suite 330) Floor/Bldg 3 Floor Med Plaza
rd

Zone Valve Location for this Area Across from exam 8 ZVB Manufacturer Medaes

FL Hosp. Tag # VA/O2-P-5PC-03-B-Z-W-04
Location IAW NFPA 99 Pass Labeled Pass Gauges Pass Leak Test Pass
Test Gauge O2 51 VAC 25
Pressure vs.
ZVB Gauge 52 25

Valve Size ½” 1 ¼”
Comments:

Gas/Pipeline Purity Oxygen Comments
Hydrocarbons <1 PPM
Dew Point -46
Carbon Monoxide <1 PPM
Carbon Dioxide <1 PPM
Gas Concentration 99.9%O2
Particulates <1

Odor/Discoloration None
Test Location Exam 1

Area Alarm Panel Location for this Area No alarm panel at this location
