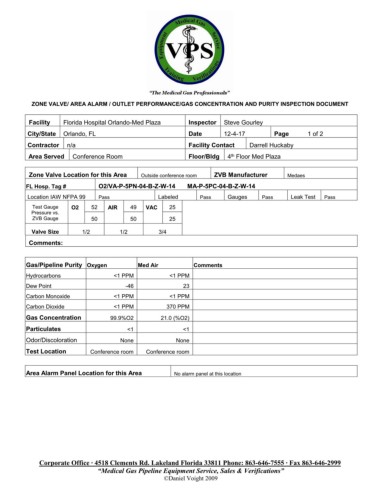

ZONE VALVE/ AREA ALARM / OUTLET PERFORMANCE/GAS CONCENTRATION AND PURITY INSPECTION DOCUMENT

Facility Florida Hospital Orlando-Med Plaza Inspector Steve Gourley
City/State Orlando, FL Date 12-4-17 Page 1 of 2
Contractor n/a Facility Contact Darrell Huckaby

Area Served Conference Room Floor/Bldg 4 Floor Med Plaza
th

Zone Valve Location for this Area Outside conference room ZVB Manufacturer Medaes

FL Hosp. Tag # O2/VA-P-5PN-04-B-Z-W-14 MA-P-5PC-04-B-Z-W-14
Location IAW NFPA 99 Pass Labeled Pass Gauges Pass Leak Test Pass
Test Gauge O2 52 AIR 49 VAC 25
Pressure vs.
ZVB Gauge 50 50 25
Valve Size 1/2 1/2 3/4
Comments:

Gas/Pipeline Purity Oxygen Med Air Comments
Hydrocarbons <1 PPM <1 PPM
Dew Point -46 23
Carbon Monoxide <1 PPM <1 PPM
Carbon Dioxide <1 PPM 370 PPM
Gas Concentration 99.9%O2 21.0 (%O2)

Particulates <1 <1
Odor/Discoloration None None
Test Location Conference room Conference room

Area Alarm Panel Location for this Area No alarm panel at this location
