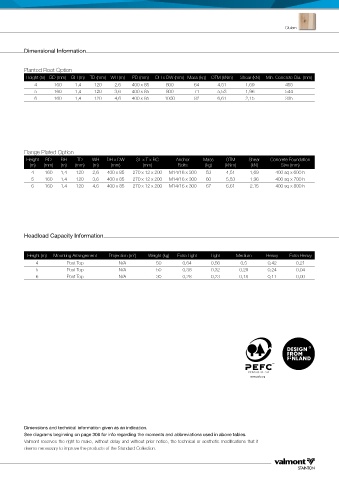

Page 117 - UK Standard Products Catalogue 2018_23.10.18

Glulam

Dimensional Information

Planted Root Option
Height (m) BD (mm) BH (m) TD (mm) WH (m) PD (mm) DH x DW (mm) Mass (kg) OTM (kNm) Shear (kN) Min. Concrete Dia. (mm)
4 160 1,4 120 2,6 400 x 85 800 64 4,51 1,69 455
5 160 1,4 120 3,6 400 x 85 800 71 5,53 1,96 544
6 160 1,4 120 4,6 400 x 85 1000 82 6,61 2,15 335

Flange Plated Option
Height BD BH TD WH DH x DW SL x T x BC Anchor Mass OTM Shear Concrete Foundation
(m) (mm) (m) (mm) (m) (mm) (mm) Bolts (kg) (kNm) (kN) Size (mm)
4 160 1,4 120 2,6 400 x 85 270 x 12 x 200 M14/16 x 300 53 4,51 1,69 400 sq x 600 h
5 160 1,4 120 3,6 400 x 85 270 x 12 x 200 M14/16 x 300 60 5,53 1,96 400 sq x 700 h
6 160 1,4 120 4,6 400 x 85 270 x 12 x 200 M14/16 x 300 67 6,61 2,15 400 sq x 800 h

Headload Capacity Information

Height (m) Mounting Arrangement Projection (m ) 2 Weight (kg) Extra Light Light Medium Heavy Extra Heavy
4 Post Top N/A 50 0,64 0,56 0,5 0,42 0,21
5 Post Top N/A 50 0,38 0,32 0,29 0,24 0,04
6 Post Top N/A 30 0,28 0,23 0,18 0,11 0,00

Dimensions and technical information given as an indication.
See diagrams beginning on page 308 for info regarding the moments and abbreviations used in above tables.
Valmont reserves the right to make, without delay and without prior notice, the technical or aesthetic modifications that it
deems necessary to improve the products of the Standard Collection.
