P. 56

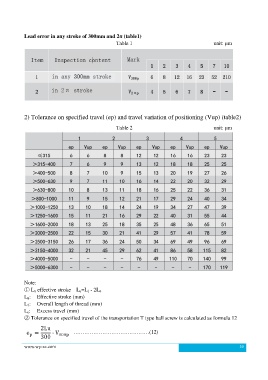

Lead error in any stroke of 300mm and 2π (table1)
Table 1 unit: μm
2) Tolerance on specified travel (ep) and travel variation of positioning (Vup) (table2)
Table 2 unit: μm
Note:
① L u effective stroke L u=L 1 - 2L e
L u: Effective stroke (mm)
L 1: Overall length of thread (mm)
L e: Excess travel (mm)
② Tolerance on specified travel of the transportation T type ball screw is calculated as formula 12
……………………………………(12)
www.wy-sz.com 53
