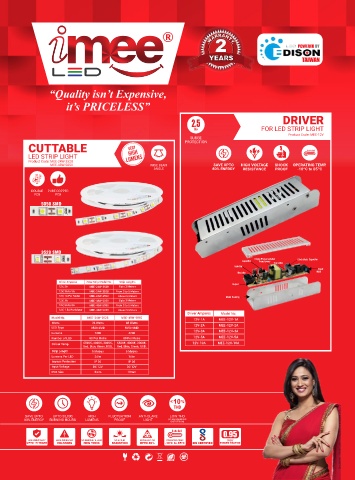

Page 21 - animated catalog

R
POWERED BY
TAIWAN

2.5 DRIVER
Kv FOR LED STRIP LIGHT
Product Code: MEE-12V
SURGE
PROTECTION
CUTTABLE very
high
LED STRIP LIGHT LUMENS
Product Code: MEE-24W-3528
MEE-48W-5050 WIDE BEAM SAVE UPTO HIGH VOLTAGE SHOCK OPERATING TEMP.
ANGLE 80% ENERGY RESISTANCE PROOF -10ºC to 85ºC
DOUBLE PURE COPPER
PCB PCB
5050 SMD

3528 SMD
Single Phase Isolated Electrolytic Capacitor
Capacitor Transformer
Transistor
Inductor
Input
Resistor MOV
Driver Amperes iMee Strip Model No. Strip Lengths
Output
12V, 2A MEE-24W-3528 Upto 3 Meters
12V, 3A to 5A MEE-24W-3528 From 3 to 5 Meters
12V, 1A Per Meter MEE-24W-3528 Above 5 Meters Metal Housing
12V, 3A MEE-48W-5050 Upto 3 Meters
12V, 5A to 8A MEE-48W-5050 From 3 to 5 Meters
12V, 1.5A Per Meter MEE-48W-5050 Above 5 Meters
Driver Amperes Model No.
Model No. MEE-24W-3528 MEE-48W-5050
12V-1A MEE-12V-1A
Watts 24 Watts 48 Watts
12V-2A MEE-12V-2A
LED Type 3528 SMD 5050 SMD
12V-3A MEE-12V-3A
Lumens 7200 4200
Number of LED 60 Per Metre 60 Per Metre 12V-5A MEE-12V-5A
6500K, 4000K, 3000K, 6500K, 4000K, 3000K, 12V-10A MEE-12V-10A
Colour Temp.
Red, Blue, Green, RGB. Red, Blue, Green, RGB.
Strip Length 5 Metres 5 Metres
Lumens Per LED 24lm 14lm
Ingress Protection IP 20 IP 20
Input Voltage DC 12V DC 12V
PCB Size 8mm 10mm
10
< %
THD
Disclaimer : Model used for illustrative purpose only
SAVE UPTO UPTO 50,000 HIGH FLUCTUATION ANTI-GLARE LOW THD
80% ENERGY BURNING HOURS LUMENS PROOF LIGHT (TOTAL HARMONIC
DISTORTION)
85
85
