R
POWERED BY
TAIWAN

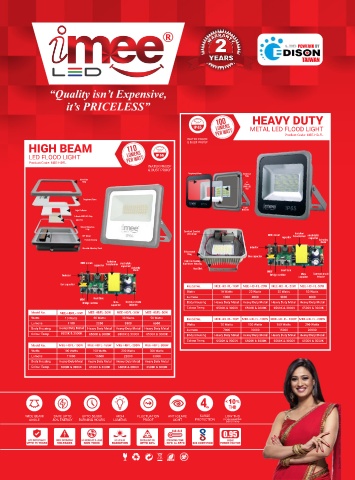

HEAVY DUTY
METAL LED FLOOD LIGHT
Product Code: MEE-HD-FL
WATER PROOF
& DUST PROOF
HIGH BEAM
LED FLOOD LIGHT IP 66
Product Code: MEE-HBFL
WATER PROOF
& DUST PROOF
Toughened Glass Aluminium
Ring
Aluminium
Ring A
Grade
SMD LED
chip
Toughened Glass
Light
Light Reector Reector
A Grade SMD LED Chip
LED PCB
Silicon Protective
Ring
Constant Current
LED driver Isolation
HPF Driver EMC circuit Transformer electrolytic
capacitor capacitor
Product Housing Schottky
diode
Movable Adjesting Stand Inductor
Silicon seal
Ring
Box capacitor
Isolation High Die Casting
EMC circuit electrolytic Aluminium Housing
capacitor Transformer
capacitor
Schottky Heat Sink
diode Heat Sink
MOV
Inductor Bridge rectier Mica Common mode
capacitor inductor
Box capacitor
Model No. MEE-HD-FL-10W MEE-HD-FL-20W MEE-HD-FL-30W MEE-HD-FL-50W
Watts 10 Watts 20 Watts 30 Watts 50 Watts
Lumens 1000 2000 3000 5000
Heat Sink
MOV
Bridge rectier Mica Common mode Body Housing Heavy Duty Metal Heavy Duty Metal Heavy Duty Metal Heavy Duty Metal
capacitor inductor
Colour Temp. 6500K & 3000K 6500K & 3000K 6500K & 3000K 6500K & 3000K
Model No. MEE-HBFL-10W MEE-HBFL-20W MEE-HBFL-30W MEE-HBFL-50W
Watts 10 Watts 20 Watts 30 Watts 50 Watts Model No. MEE-HD-FL-70W MEE-HD-FL-100W MEE-HD-FL-150W MEE-HD-FL-200W
Lumens 1100 2200 3300 5500 Watts 70 Watts 100 Watts 150 Watts 200 Watts
Body Housing Heavy Duty Metal Heavy Duty Metal Heavy Duty Metal Heavy Duty Metal Lumens 7000 10000 15000 20000
Colour Temp. 6500K & 3000K 6500K & 3000K 6500K & 3000K 6500K & 3000K Body Housing Heavy Duty Metal Heavy Duty Metal Heavy Duty Metal Heavy Duty Metal
Colour Temp. 6500K & 3000K 6500K & 3000K 6500K & 3000K 6500K & 3000K
Model No. MEE-HBFL-100W MEE-HBFL-150W MEE-HBFL-200W MEE-HBFL-300W
Watts 100 Watts 150 Watts 200 Watts 300 Watts
Lumens 11000 16500 22000 33000
Body Housing Heavy Duty Metal Heavy Duty Metal Heavy Duty Metal Heavy Duty Metal
Colour Temp. 6500K & 3000K 6500K & 3000K 6500K & 3000K 6500K & 3000K
10
< %
4 Kv
THD
Disclaimer : Model used for illustrative purpose only
WIDE BEAM SAVE UPTO UPTO 50,000 HIGH FLUCTUATION ANTI-GLARE SURGE LOW THD
ANGLE 80% ENERGY BURNING HOURS LUMENS PROOF LIGHT PROTECTION (TOTAL HARMONIC
DISTORTION)
85
85
