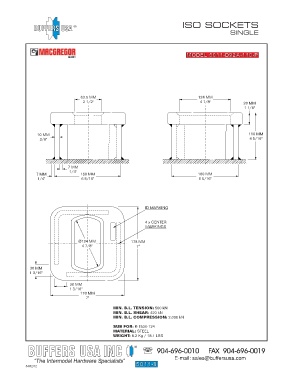

® ISO SOCKETS
SINGLE

MODEL 5011-D92A-110-P

63.5 MM 124 MM
2 1/2" 4 7/8" 28 MM
1 1/8"

10 MM 110 MM
3/8" 4 5/16"

7 MM
1/4"
7 MM 160 MM 160 MM
1/4" 6 5/16" 6 5/16"

ID MARKING

4 x CENTER
MARKINGS

Ø 124 MM 178 MM
4 7/8" 7"

30 MM
1 3/16"

30 MM
1 3/16"
178 MM
7"

MIN. B.L. TENSION: 500 kN
MIN. B.L. SHEAR: 420 kN
MIN. B.L. COMPRESSION: 2,000 kN
SUB FOR: K-1530-124
MATERIAL: STEEL
WEIGHT: 8.2 Kg / 18.1 LBS

®
