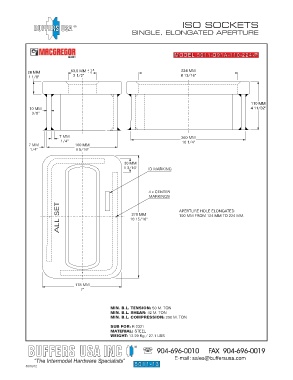

P. 144
® ISO SOCKETS
SINGLE, ELONGATED APERTURE
MODEL 5011-D91A-110-224-P
28 MM 63.5 MM + 1.5 224 MM
- 0
1 1/8" 2 1/2" 8 13/16"
110 MM
10 MM 4 11/32"
3/8"
7 MM 260 MM
1/4" 10 1/4"
7 MM 160 MM
1/4" 6 5/16"
30 MM
1 3/16" ID MARKING
4 x CENTER
MARKINGS
ALL SET 10 15/16" APERTURE HOLE ELONGATED
278 MM
100 MM FROM 124 MM TO 224 MM.
178 MM
7"
MIN. B.L. TENSION: 50 M. TON
MIN. B.L. SHEAR: 42 M. TON
MIN. B.L. COMPRESSION: 200 M. TON
SUB FOR: K-2321
MATERIAL: STEEL
WEIGHT: 12.29 Kg / 27.1 LBS
®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5011-13
08/16/12
