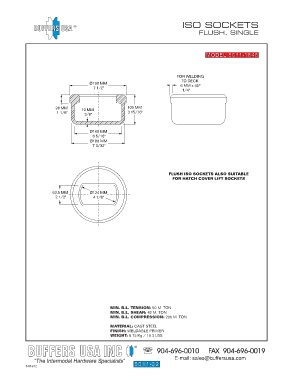

® ISO SOCKETS
FLUSH, SINGLE

MODEL 5011-1848

FOR WELDING
TO DECK
Ø190 MM 6 MM x 45º
7 1/2"
1/4"

28 MM 10 MM 100 MM
1 1/8" 3/8" 3 15/16"

Ø160 MM
6 5/16"
Ø180 MM
7 3/32"

FLUSH ISO SOCKETS ALSO SUITABLE
FOR HATCH COVER LIFT SOCKETS

63.5 MM Ø124 MM
2 1/2" 4 7/8"

MIN. B.L. TENSION: 50 M. TON
MIN. B.L. SHEAR: 42 M. TON
MIN. B.L. COMPRESSION: 200 M. TON
MATERIAL: CAST STEEL
FINISH: WELDABLE PRIMER
WEIGHT: 8.75 Kg / 19.3 LBS

®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5011-32
04/03/12
