P. 168

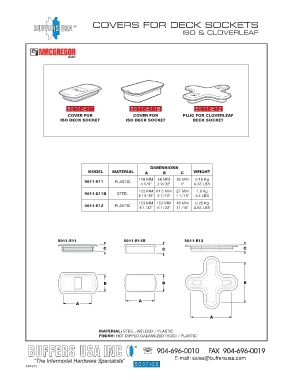

® COVERS FOR DECK SOCKETS
ISO & CLOVERLEAF
5011-E11 5011-E11B 5011-E12
COVER FOR COVER FOR PLUG FOR CLOVERLEAF
ISO DECK SOCKET ISO DECK SOCKET DECK SOCKET
DIMENSIONS
MODEL MATERIAL A B C WEIGHT
118 MM 58 MM 25 MM 0.15 Kg
5011-E11 PLASTIC 4 5/8" 2 9/32" 1" 0.33 LBS
122 MM 61.5 MM 27 MM 1.9 Kg
5011-E11B STEEL 4 13/16" 2 7/16" 1 1/16" 4.2 LBS
153 MM 153 MM 18 MM 0.25 Kg
5011-E12 PLASTIC
6 1/32" 6 1/32" 11/16" 0.55 LBS
5011-E11 5011-E11B 5011-E12
C C C
B B B
A
A
A
MATERIAL: STEEL, WELDED / PLASTIC
FINISH: HOT DIPPED GALVANIZED (HDG) / PLASTIC
®
