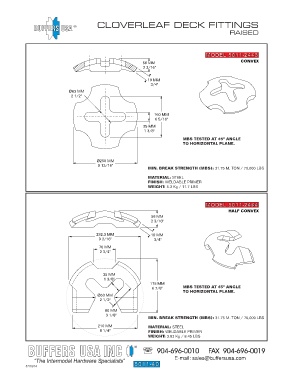

® CLOVERLEAF DECK FITTINGS
RAISED

MODEL 5011-2443

56 MM CONVEX
2 3/16"

19 MM
3/4"
Ø63 MM
2 1/2"

160 MM
6 5/16"
35 MM
1 3/8"
MBS TESTED AT 45º ANGLE
TO HORIZONTAL PLANE.

Ø250 MM
9 13/16"
MIN. BREAK STRENGTH (MBS): 31.75 M. TON / 70,000 LBS

MATERIAL: STEEL
FINISH: WELDABLE PRIMER
WEIGHT: 5.3 Kg / 11.7 LBS

MODEL 5011-2444
HALF CONVEX
56 MM
2 3/16"

232.3 MM 19 MM
9 3/16" 3/4"
70 MM
2 3/4"

35 MM
1 3/8"
175 MM
6 7/8" MBS TESTED AT 45º ANGLE
TO HORIZONTAL PLANE.
Ø63 MM
2 1/2"
80 MM
3 1/8"
MIN. BREAK STRENGTH (MBS): 31.75 M. TON / 70,000 LBS
210 MM MATERIAL: STEEL
8 1/4" FINISH: WELDABLE PRIMER
WEIGHT: 3.83 Kg / 8.45 LBS

®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5011-40
07/18/14
