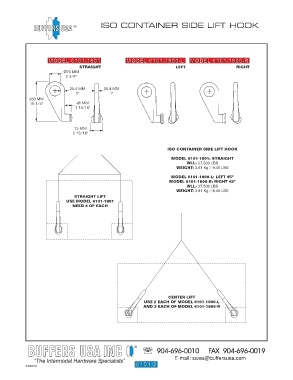

® ISO CONTAINER SIDE LIFT HOOK

MODEL 6101-1801 MODEL 6101-1800-L MODEL 6101-1800-R
STRAIGHT LEFT RIGHT
Ø70 MM
2 3/4"

25.4 MM 25.4 MM
1" 1"
260 MM
10 1/4" 46 MM
1 13/16"

75 MM
2 15/16"

ISO CONTAINER SIDE LIFT HOOK

MODEL 6101-1801: STRAIGHT
WLL: 27,500 LBS
WEIGHT: 3.81 Kg / 8.40 LBS

MODEL 6101-1800-L: LEFT 45º
MODEL 6101-1800-R: RIGHT 45º
WLL: 27,500 LBS
WEIGHT: 3.81 Kg / 8.40 LBS
STRAIGHT LIFT
USE MODEL 6101-1801
NEED 4 OF EACH

CENTER LIFT
USE 2 EACH OF MODEL 6101-1800-L
AND 2 EACH OF MODEL 6101-1800-R

®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
6101-2
04/28/10
