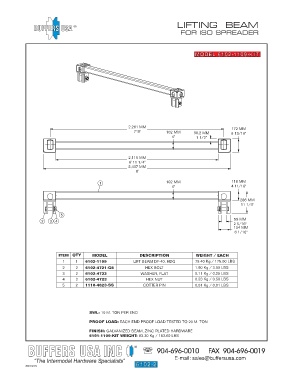

® LIFTING BEAM
FOR ISO SPREADER

MODEL 6102-1109-KIT

2,261 MM 172 MM
7' 5" 102 MM 38.2 MM 6 13/16"
4" 1 1/2"

2,115 MM
6' 11 1/4"
2,437 MM
8'

1 102 MM 118 MM
4" 4 11/16"

286 MM
11 1/4"
5
2 3 4 59 MM
2 5/16"
154 MM
6 1/16"

ITEM QTY MODEL DESCRIPTION WEIGHT / EACH
1 1 6102-1109 LIFT BEAM DF-40, HDG 79.40 Kg / 175.00 LBS
2 2 6102-4721-G8 HEX BOLT 1.60 Kg / 3.50 LBS
3 2 6102-4722 WASHER, FLAT 0.11 Kg / 0.25 LBS
4 2 6102-4723 HEX NUT 0.23 Kg / 0.50 LBS
5 2 1110-4623-SS COTTER PIN 0.01 Kg / 0.01 LBS

SWL: 10 M. TON PER END
PROOF LOAD: EACH END PROOF LOAD TESTED TO 20 M. TON

FINISH: GALVANIZED BEAM, ZINC PLATED HARDWARE
6101-1109-KIT WEIGHT: 83.30 Kg / 183.60 LBS

®
