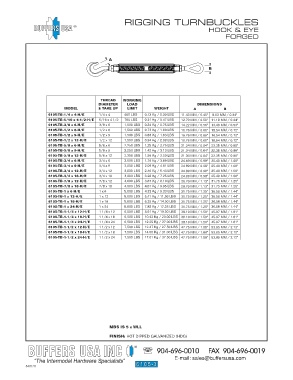

Page 202 - 2017 Lashing Catalog Web_Neat

RIGGING TURNBUCKLES
®
HOOK & EYE
FORGED

A
B

THREAD WORKING
DIAMETER LOAD DIMENSIONS
MODEL & TAKE UP LIMIT WEIGHT A B
6105-TB-1/4 x 4-H/E 1/4 x 4 400 LBS 0.13 Kg / 0.30 LBS 11.43 MM / 0.45" 8.63 MM / 0.34"
6105-TB-5/16 x 4-1/2-H/E 5/16 x 4 1/2 700 LBS 0.21 Kg / 0.47 LBS 12.70 MM / 0.50" 11.18 MM / 0.44"
6105-TB-3/8 x 6-H/E 3/8 x 6 1,000 LBS 0.34 Kg / 0.75 LBS 14.22 MM / 0.56" 13.46 MM / 0.53"
6105-TB-1/2 x 6-H/E 1/2 x 6 1,500 LBS 0.73 Kg / 1.60 LBS 16.76 MM / 0.66" 18.54 MM / 0.72"
6105-TB-1/2 x 9-H/E 1/2 x 9 1,500 LBS 0.83 Kg / 1.83 LBS 16.76 MM / 0.66" 18.54 MM / 0.72"
6105-TB-1/2 x 12-H/E 1/2 x 12 1,500 LBS 0.94 Kg / 2.08 LBS 16.76 MM / 0.66" 18.54 MM / 0.72"
6105-TB-5/8 x 6-H/E 5/8 x 6 2,250 LBS 1.25 Kg / 2.75 LBS 21.34 MM / 0.84" 22.35 MM / 0.88"
6105-TB-5/8 x 9-H/E 5/8 x 9 2,250 LBS 1.42 Kg / 3.13 LBS 21.34 MM / 0.84" 22.35 MM / 0.88"
6105-TB-5/8 x 12-H/E 5/8 x 12 2,250 LBS 1.58 Kg / 3.50 LBS 21.34 MM / 0.84" 22.35 MM / 0.88"
6105-TB-3/4 x 6-H/E 3/4 x 6 3,000 LBS 1.76 Kg / 3.89 LBS 24.89 MM / 0.98" 25.40 MM / 1.00"
6105-TB-3/4 x 9-H/E 3/4 x 9 3,000 LBS 2.09 Kg / 4.61 LBS 24.89 MM / 0.98" 25.40 MM / 1.00"
6105-TB-3/4 x 12-H/E 3/4 x 12 3,000 LBS 2.46 Kg / 5.43 LBS 24.89 MM / 0.98" 25.40 MM / 1.00"
6105-TB-3/4 x 18-H/E 3/4 x 18 3,000 LBS 3.28 Kg / 7.25 LBS 24.89 MM / 0.98" 25.40 MM / 1.00"
6105-TB-7/8 x 12-H/E 7/8 x 12 4,000 LBS 3.67 Kg / 8.10 LBS 28.70 MM / 1.13" 31.75 MM / 1.25"
6105-TB-7/8 x 18-H/E 7/8 x 18 4,000 LBS 4.51 Kg / 9.95 LBS 28.70 MM / 1.13" 31.75 MM / 1.25"
6105-TB-1 x 6-H/E 1 x 6 5,000 LBS 4.23 Kg / 9.33 LBS 31.75 MM / 1.25" 36.58 MM / 1.44"
6105-TB-1 x 12-H/E 1 x 12 5,000 LBS 5.41 Kg / 11.93 LBS 31.75 MM / 1.25" 36.58 MM / 1.44"
6105-TB-1 x 18-H/E 1 x 18 5,000 LBS 6.35 Kg / 14.00 LBS 31.75 MM / 1.25" 36.58 MM / 1.44"
6105-TB-1 x 24-H/E 1 x 24 5,000 LBS 7.82 Kg / 17.25 LBS 31.75 MM / 1.25" 36.58 MM / 1.44"
6105-TB-1-1/4 x 12-H/E 1 1/4 x 12 6,500 LBS 8.61 Kg / 19.00 LBS 38.10 MM / 1.50" 45.97 MM / 1.81"
6105-TB-1-1/4 x 18-H/E 1 1/4 x 18 6,500 LBS 10.43 Kg / 23.00 LBS 38.10 MM / 1.50" 45.97 MM / 1.81"
6105-TB-1-1/4 x 24-H/E 1 1/4 x 24 6,500 LBS 12.25 Kg / 27.00 LBS 38.10 MM / 1.50" 45.97 MM / 1.81"
6105-TB-1-1/2 x 12-H/E 1 1/2 x 12 7,500 LBS 12.47 Kg / 27.50 LBS 47.75 MM / 1.88" 53.85 MM / 2.12"
6105-TB-1-1/2 x 18-H/E 1 1/2 x 18 7,500 LBS 14.06 Kg / 31.00 LBS 47.75 MM / 1.88" 53.85 MM / 2.12"
6105-TB-1-1/2 x 24-H/E 1 1/2 x 24 7,500 LBS 17.01 Kg / 37.50 LBS 47.75 MM / 1.88" 53.85 MM / 2.12"

MBS IS 5 x WLL

FINISH: HOT DIPPED GALVANIZED (HDG)

®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
6105-3
04/11/11
