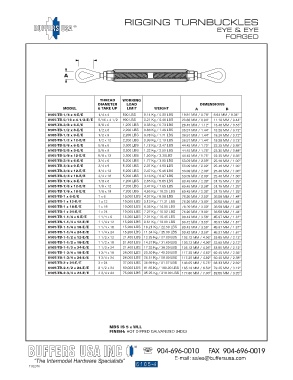

P. 203
RIGGING TURNBUCKLES
®
EYE & EYE
FORGED
A
THREAD WORKING
DIAMETER LOAD DIMENSIONS
MODEL & TAKE UP LIMIT WEIGHT A B
6105-TB-1/4 x 4-E/E 1/4 x 4 500 LBS 0.14 Kg / 0.30 LBS 19.81 MM / 0.78" 8.64 MM / 0.34"
6105-TB-5/16 x 4-1/2-E/E 5/16 x 4 1/2 800 LBS 0.21 Kg / 0.46 LBS 23.88 MM / 0.94" 11.18 MM / 0.44"
6105-TB-3/8 x 6-E/E 3/8 x 6 1,200 LBS 0.33 Kg / 0.73 LBS 28.45 MM / 1.12" 13.46 MM / 0.53"
6105-TB-1/2 x 6-E/E 1/2 x 6 2,200 LBS 0.66 Kg / 1.46 LBS 36.57 MM / 1.44" 18.28 MM / 0.72"
6105-TB-1/2 x 9-E/E 1/2 x 9 2,200 LBS 0.78 Kg / 1.71 LBS 36.57 MM / 1.44" 18.28 MM / 0.72"
6105-TB-1/2 x 12-E/E 1/2 x 12 2,200 LBS 0.99 Kg / 2.19 LBS 36.57 MM / 1.44" 18.28 MM / 0.72"
6105-TB-5/8 x 6-E/E 5/8 x 6 3,500 LBS 1.12 Kg / 2.47 LBS 44.45 MM / 1.75" 22.35 MM / 0.88"
6105-TB-5/8 x 9-E/E 5/8 x 9 3,500 LBS 1.32 Kg / 2.90 LBS 44.45 MM / 1.75" 22.35 MM / 0.88"
6105-TB-5/8 x 12-E/E 5/8 x 12 3,500 LBS 1.50 Kg / 3.30LBS 44.45 MM / 1.75" 22.35 MM / 0.88"
6105-TB-3/4 x 6-E/E 3/4 x 6 5,200 LBS 1.77 Kg / 3.90 LBS 53.09 MM / 2.09" 25.40 MM / 1.00"
6105-TB-3/4 x 9-E/E 3/4 x 9 5,200 LBS 2.07 Kg / 4.60 LBS 53.09 MM / 2.09" 25.40 MM / 1.00"
6105-TB-3/4 x 12-E/E 3/4 x 12 5,200 LBS 2.47 Kg / 5.46 LBS 53.09 MM / 2.09" 25.40 MM / 1.00"
6105-TB-3/4 x 18-E/E 3/4 x 18 5,200 LBS 3.16 Kg / 6.97 LBS 53.09 MM / 2.09" 25.40 MM / 1.00"
6105-TB-7/8 x 6-E/E 7/8 x 6 7,200 LBS 2.65 Kg / 5.85 LBS 60.45 MM / 2.38" 31.75 MM / 1.25"
6105-TB-7/8 x 12-E/E 7/8 x 12 7,200 LBS 3.47 Kg / 7.65 LBS 60.45 MM / 2.38" 31.75 MM / 1.25"
6105-TB-7/8 x 18-E/E 7/8 x 18 7,200 LBS 4.65 Kg / 10.25 LBS 60.45 MM / 2.38" 31.75 MM / 1.25"
6105-TB-1 x 6-E/E 1 x 6 10,000 LBS 4.07 Kg / 8.98 LBS 76.20 MM / 3.00" 36.58 MM / 1.44"
6105-TB-1 x 12-E/E 1 x 12 10,000 LBS 5.13 Kg / 11.31 LBS 76.20 MM / 3.00" 36.58 MM / 1.44"
6105-TB-1 x 18-E/E 1 x 18 10,000 LBS 6.35 Kg / 14.00 LBS 76.20 MM / 3.00" 36.58 MM / 1.44"
6105-TB-1 x 24-E/E 1 x 24 10,000 LBS 7.27 Kg / 16.02 LBS 76.20 MM / 3.00" 36.58 MM / 1.44"
6105-TB-1-1/4 x 6-E/E 1 1/4 x 6 15,200 LBS 7.01 Kg / 15.45 LBS 90.42 MM / 3.56" 45.97 MM / 1.81"
6105-TB-1-1/4 x 12-E/E 1 1/4 x 12 15,200 LBS 8.61 Kg / 19.00 LBS 90.42 MM / 3.56" 45.97 MM / 1.81"
6105-TB-1-1/4 x 18-E/E 1 1/4 x 18 15,200 LBS 10.21 Kg / 22.50 LBS 90.42 MM / 3.56" 45.97 MM / 1.81"
6105-TB-1-1/4 x 24-E/E 1 1/4 x 24 15,200 LBS 11.34 Kg / 25.00 LBS 90.42 MM / 3.56" 45.97 MM / 1.81"
6105-TB-1-1/2 x 12-E/E 1 1/2 x 12 21,400 LBS 12.25 Kg / 27.00 LBS 103.12 MM / 4.06" 53.85 MM / 2.12"
6105-TB-1-1/2 x 18-E/E 1 1/2 x 18 21,400 LBS 14.37 Kg / 31.69 LBS 103.12 MM / 4.06" 53.85 MM / 2.12"
6105-TB-1-1/2 x 24-E/E 1 1/2 x 24 21,400 LBS 17.33 Kg / 38.20 LBS 103.12 MM / 4.06" 53.85 MM / 2.12"
6105-TB-1-3/4 x 18-E/E 1 3/4 x 18 28,000 LBS 20.50 Kg / 45.20 LBS 117.35 MM / 4.62" 60.45 MM / 2.38"
6105-TB-1-3/4 x 24-E/E 1 3/4 x 24 28,000 LBS 26.31 Kg / 58.00 LBS 117.35 MM / 4.62" 60.45 MM / 2.38"
6105-TB-2 x 24-E/E 2 x 24 37,000 LBS 36.99 Kg / 81.57 LBS 146.05 MM / 5.75" 68.33 MM / 2.69"
6105-TB-2-1/2 x 24-E/E 2 1/2 x 24 60,000 LBS 81.65 Kg / 180.00 LBS 165.10 MM / 6.50" 79.25 MM / 3.12"
6105-TB-2-3/4 x 24-E/E 2 3/4 x 24 75,000 LBS 95.25 Kg / 210.00 LBS 177.80 MM / 7.00" 82.55 MM / 3.25"
MBS IS 5 x WLL
FINISH: HOT DIPPED GALVANIZED (HDG)
®
