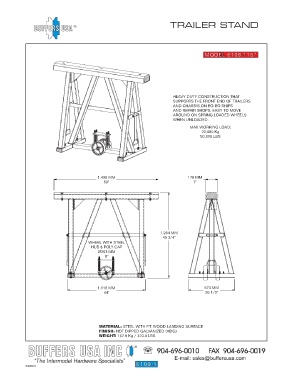

® TRAILER STAND
MODEL 6109-1151
HEAVY DUTY CONSTRUCTION THAT
SUPPORTS THE FRONT END OF TRAILERS
AND CHASSIS ON RO-RO SHIPS
AND REPAIR SHOPS. EASY TO MOVE
AROUND ON SPRING LOADED WHEELS
WHEN UNLOADED.
MAX WORKING LOAD:
22,680 Kg
50,000 LBS
1,499 MM 178 MM
59" 7"
1,264 MM
49 3/4"
WHEEL WITH STEEL
HUB & POLY CAP
Ø203 MM
8"
1,118 MM 673 MM
44" 26 1/2"
MATERIAL: STEEL WITH P.T. WOOD LANDING SURFACE
FINISH: HOT DIPPED GALVANIZED (HDG)
WEIGHT: 167.8 Kg / 370.0 LBS
®
6109-1
03/29/11
