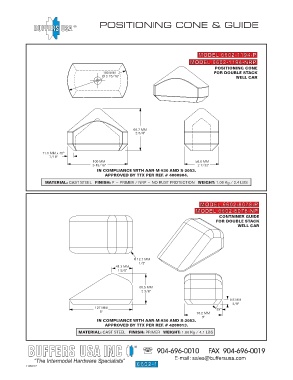

Page 215 - 2017 Lashing Catalog Web_Neat

® POSITIONING CONE & GUIDE

MODEL 6602-1194-P
MODEL 6602-1194-NRP
POSITIONING CONE
100 MM FOR DOUBLE STACK
Ø 3-15/16" WELL CAR

66.7 MM
2-5/8"

11.1 MM x 45º
7/16"
100 MM 56.0 MM
3-15/16" 2-7/32"
IN COMPLIANCE WITH AAR-M-930 AND S-2053.
APPROVED BY TTX PER REF. # 4000904.
MATERIAL: CAST STEEL FINISH: P = PRIMER / NRP = NO RUST PROTECTION WEIGHT: 1.09 Kg / 2.4 LBS

MODEL 6602-8078-P
MODEL 6602-8078-NP
CONTAINER GUIDE
FOR DOUBLE STACK
WELL CAR

R 12.7 MM
1/2"
41.3 MM
1 5/8"

60.5 MM
2 3/8"

9.5 MM
3/8"
127 MM 35º
5" 76.2 MM
3"
IN COMPLIANCE WITH AAR-M-930 AND S-2053.
APPROVED BY TTX PER REF. # 4200013.
MATERIAL: CAST STEEL FINISH: PRIMER WEIGHT: 1.86 Kg / 4.1 LBS

®
