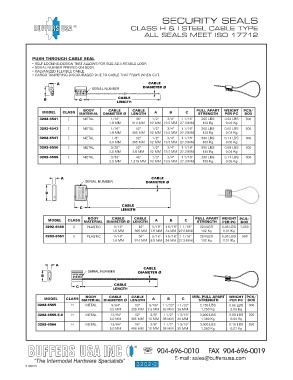

Page 28 - 2017 Lashing Catalog Web_Neat
P. 28
SECURITY SEALS
SECURITY SEALS
®
CLASS H & I STEEL CABLE TYPE
CLASS H & I STEEL CABLE TYPE
ALL SEALS MEET ISO 17712
ALL SEALS MEET ISO 17712
PUSH THROUGH CABLE SEAL
• SELF-LOCKING DESIGN THAT ALLOWS FOR SIZE ADJUSTABLE LOOP.
• SERIAL NUMBER PRINTED ON BODY.
• GALVANIZED FLEXIBLE CABLE.
• CARGO TAMPERING DISCOURAGED DUE TO CABLE THAT FRAYS WHEN CUT.
A CABLE
SERIAL NUMBER DIAMETER Ø
BUFFERS 6550
012345
B C CABLE
LENGTH
BODY CABLE CABLE PULL APART WEIGHT PCS/
MODEL CLASS MATERIAL DIAMETER Ø LENGTH A B C STRENGTH PER PC BOX
3202-6541 I METAL 1/16" 36" 1/2" 3/4" 1 1/16" 265 LBS 0.04 LBS 500
1.8 MM 914 MM 12 MM 19.5 MM 27.3 MM 120 Kg 0.02 Kg
3202-6543 I METAL 1/16" 12" 1/2" 3/4" 1 1/16" 265 LBS 0.06 LBS 500
1.8 MM 305 MM 12 MM 19.5 MM 27.3 MM 120 Kg 0.03 Kg
3202-6547 I METAL 1/8" 12" 1/2" 3/4" 1 1/16" 330 LBS 0.11 LBS 300
3.0 MM 305 MM 12 MM 19.5 MM 27.3 MM 150 Kg 0.05 Kg
3202-6550 I METAL 3/32" 12" 1/2" 3/4" 1 1/16" 290 LBS 0.08 LBS 500
2.5 MM 2.5 MM 12 MM 19.5 MM 27.3 MM 130 Kg 0.04 Kg
3202-6559 I METAL 3/32" 48" 1/2" 3/4" 1 1/16" 290 LBS 0.11 LBS 300
2.5 MM 1,219 MM 12 MM 19.5 MM 27.3 MM 130 Kg 0.05 Kg
A CABLE
SERIAL NUMBER DIAMETER Ø
B
CABLE
C
LENGTH
BODY CABLE CABLE PULL APART WEIGHT PCS/
MODEL CLASS MATERIAL DIAMETER Ø LENGTH A B C STRENGTH PER PC BOX
3202-6560 I PLASTIC 1/16" 12" 5/16" 1 5/16" 1 1/16" 224 LBS 0.03 LBS 1,000
1.6 MM 305 MM 7.5 MM 34 MM 27.5 MM 102 Kg 0.01 Kg
3202-6561 I PLASTIC 1/16" 36" 5/16" 1 5/16" 1 1/16" 224 LBS 0.03 LBS 500
1.6 MM 914 MM 8.5 MM 34 MM 27.5 MM 102 Kg 0.01 Kg
A
CABLE
SERIAL NUMBER DIAMETER Ø
B BUFFERS 6565
012345
CABLE
C
LENGTH
BODY CABLE CABLE MIN. PULL APART WEIGHT PCS/
MODEL CLASS MATERIAL DIAMETER Ø LENGTH A B C STRENGTH PER PC BOX
3202-6565 H METAL 9/64" 12" 5/16" 1 1/32" 1 1/32" 2,755 LBS 0.06 LBS 300
3.5 MM 305 MM 7.5 MM 26 MM 26 MM 1,250 Kg 0.03 Kg
3202-6565-5.0 H METAL 13/64" 12" 3/8" 1 1/2" 1 3/16" 3,000 LBS 0.08 LBS 200
5.0 MM 305 MM 10 MM 38 MM 30 MM 1,360 Kg 0.04 Kg
3202-6566 H METAL 13/64" 16" 3/8" 1 1/2" 1 3/16" 3,000 LBS 0.15 LBS 250
5.0 MM 406 MM 10 MM 38 MM 30 MM 1,360 Kg 0.07 Kg
®
