P. 56

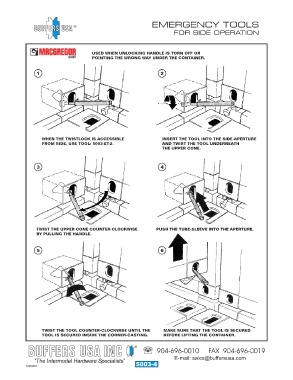

EMERGENCY TOOLS
®
FOR SIDE OPERATION
USED WHEN UNLOCKING HANDLE IS TORN OFF OR
POINTING THE WRONG WAY UNDER THE CONTAINER.
1 2
WHEN THE TWISTLOCK IS ACCESSIBLE INSERT THE TOOL INTO THE SIDE-APERTURE
FROM SIDE, USE TOOL: 5003-ET-2. AND TWIST THE TOOL UNDERNEATH
THE UPPER CONE.
3 4
TWIST THE UPPER CONE COUNTER-CLOCKWISE PUSH THE TUBE-SLEEVE INTO THE APERTURE.
BY PULLING THE HANDLE.
5 6
TWIST THE TOOL COUNTER-CLOCKWISE UNTIL THE MAKE SURE THAT THE TOOL IS SECURED
TOOL IS SECURED INSIDE THE CORNER-CASTING. BEFORE LIFTING THE CONTAINER.
®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5003-4
12/08/09
