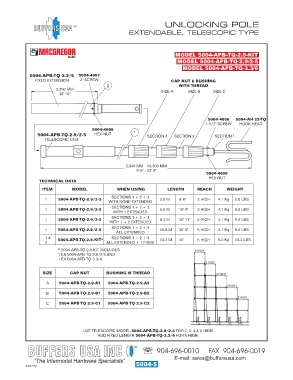

UNLOCKING POLE
®
EXTENDABLE, TELESCOPIC TYPE

MODEL 5004-APB-TQ-2.9-KIT
MODEL 5004-APB-TQ-2.9/2-5
MODEL 5004-APB-TQ-3.3/6
5004-APB-TQ-3.3/6 5004-4607
FIXED EXTENSION 2" SCREW CAP NUT & BUSHING
2 WITH THREAD
3,300 MM SIZE A SIZE B SIZE C
10' 10"

5004-4606 5004-AH-23-TQ
1 1/2" SCREW HOOK HEAD
5004-4608
5004-APB-TQ-2.9/2-5 HEX NUT 1 SECTION 3 SECTION 2 SECTION 1
TELESCOPIC UNIT

2,940 MM - 10,300 MM
9' 6" - 33' 9"
5004-4608
HEX NUT
TECHNICAL DATA
ITEM MODEL WHEN USING LENGTH REACH WEIGHT
1 5004-APB-TQ-2.9/2-5 SECTIONS 1 + 2 + 3 2.9 M 9' 6" 2 HIGH 4.1 Kg 9.0 LBS
WITH NONE EXTENDED
1 5004-APB-TQ-2.9/2-5 SECTIONS 1 + 2 + 3 5.6 M 18' 4" 3 HIGH 4.1 Kg 9.0 LBS
WITH 1 EXTENDED
1 5004-APB-TQ-2.9/2-5 SECTIONS 1 + 2 + 3 8.2 M 26' 11" 4 HIGH 4.1 Kg 9.0 LBS
WITH 1 + 2 EXTENDED
SECTIONS 1 + 2 + 3
1 5004-APB-TQ-2.9/2-5 10.8 M 35' 5" 5 HIGH 4.1 Kg 9.0 LBS
ALL EXTENDED
1 & 5004-APB-TQ-2.9-KIT* SECTIONS 1 + 2 + 3 13.4 M 44' 6 HIGH 6.0 Kg 13.2 LBS
2 ALL EXTENDED + 1 FIXED
* 5004-APB-TQ-2.9-KIT INCLUDES 6 HIGH
1 EA 5004-APB-TQ-2.9/2-5 AND
1 EA 5004-APB-TQ-3.3/6.
5 HIGH
SIZE CAP NUT BUSHING W THREAD 4 HIGH

A 5004-APB-TQ-2.9-A1 5004-APB-TQ-2.9-A2
3 HIGH
B 5004-APB-TQ-2.9-B1 5004-APB-TQ-2.9-B2
2 HIGH
C 5004-APB-TQ-2.9-C1 5004-APB-TQ-2.9-C2

USE TELESCOPIC MODEL 5004-APB-TQ-2.9/2-4 FOR 2, 3, 4 & 5 HIGH.
ADD FIXED LENGTH 5004-APB-TQ-3.3/6 FOR 6 HIGH.

®
