Page 62 - 2017 Lashing Catalog Web_Neat
P. 62

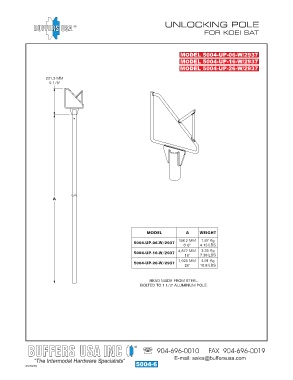

UNLOCKING POLE
®
FOR KOEI SAT
MODEL 5004-UP-06-W/2937
MODEL 5004-UP-16-W/2937
MODEL 5004-UP-26-W/2937
231.3 MM
9 1/8"
A
MODEL A WEIGHT
198.2 MM 1.87 Kg
5004-UP-06-W/2937
6' 6" 4.13 LBS
4,877 MM 3.35 Kg
5004-UP-16-W/2937
16' 7.38 LBS
7,925 MM 4.91 Kg
5004-UP-26-W/2937
26' 10.8 LBS
HEAD MADE FROM STEEL.
BOLTED TO 1 1/2" ALUMINUM POLE.
®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5004-6
05/18/10
