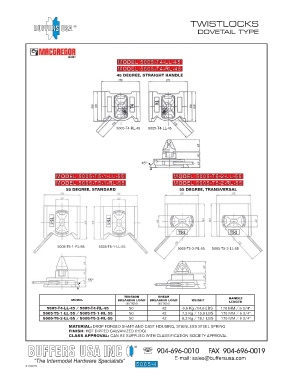

Page 68 - 2017 Lashing Catalog Web_Neat

TWISTLOCKS
®
DOVETAIL TYPE

MODEL 5005-T4-LL-45
MODEL 5005-T4-RL-45
45 DEGREE, STRAIGHT HANDLE

5005-T4-RL-45 5005-T4-LL-45

45º

MODEL 5005-T5-1-LL-55 MODEL 5005-T5-2-LL-55
MODEL 5005-T5-1-RL-55 MODEL 5005-T5-2-RL-55
55 DEGREE, STANDARD 55 DEGREE, TRANSVERSAL

5005-T5-1-RL-55 5005-T5-1-LL-55 5005-T5-2-RL-55 5005-T5-2-LL-55

55º

TENSION SHEAR
MODEL BREAKING LOAD BREAKING LOAD WEIGHT HANDLE
LENGTH
(M.TON) (M.TON)
5005-T4-LL-45 / 5005-T4-RL-45 50 42 6.6 Kg /14.6 LBS 170 MM / 6 3/4"
5005-T5-1-LL-55 / 5005-T5-1-RL-55 50 42 7.2 Kg / 15.9 LBS 170 MM / 6 3/4"
5005-T5-2-LL-55 / 5005-T5-2-RL-55 50 42 8.2 Kg / 18.1 LBS 170 MM / 6 3/4"
MATERIAL: DROP FORGED SHAFT AND CAST HOUSING, STAINLESS STEEL SPRING
FINISH: HOT DIPPED GALVANIZED (HDG)
CLASS APPROVAL: CAN BE SUPPLIED WITH CLASSIFICATION SOCIETY APPROVAL

®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5005-4
01/12/15
