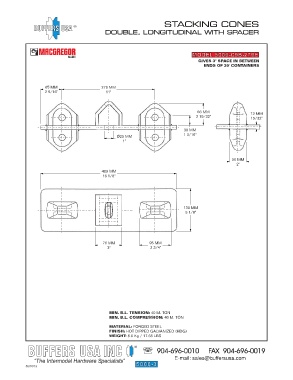

STACKING CONES
®
DOUBLE, LONGITUDINAL WITH SPACER

MODEL 5006-C9B-279E
GIVES 3" SPACE IN BETWEEN
ENDS OF 20' CONTAINERS

65 MM 279 MM
2 9/16" 11"

66 MM 12 MM
2 19/32" 15/32"

30 MM
Ø25 MM 1 3/16"
1"

50 MM
2"
409 MM
16 1/8"

130 MM
5 1/8"

76 MM 95 MM
3" 3 3/4"

MIN. B.L. TENSION: 40 M. TON
MIN. B.L. COMPRESSION: 40 M. TON
MATERIAL: FORGED STEEL
FINISH: HOT DIPPED GALVANIZED (HDG)
WEIGHT: 8.0 Kg / 17.65 LBS

®
