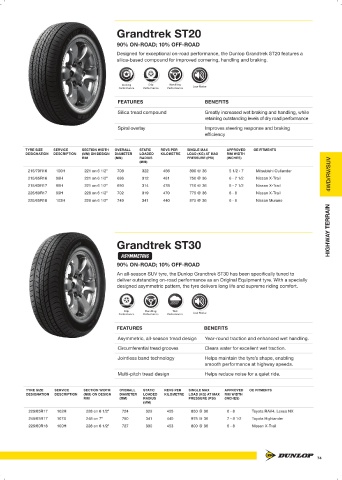

Page 75 - GDTNZ18_Product_Catalogue_2.1_Print_Ready_Neat

Grandtrek ST20

90% ON-ROAD; 10% OFF-ROAD
Designed for exceptional on-road performance, the Dunlop Grandtrek ST20 features a
silica-based compound for improved cornering, handling and braking.

Braking Grip Handling
Performance Performance Performance Low Noise
FEATURES BENEFITS
Silica tread compound Greatly increased wet braking and handling, while
retaining outstanding levels of dry road performance
Spiral overlay Improves steering response and braking
efficiency

TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS PER SINGLE MAX APPROVED OE FITMENTS
DESIGNATION DESCRIPTION (MM) ON DESIGN DIAMETER LOADED KILOMETRE LOAD (KG) AT MAX RIM WIDTH
RIM (MM) RADIUS PRESSURE (PSI) (INCHES)
4WD/RV/SUV
(MM)
215/70R16 100H 221 on 6 1/2" 708 322 466 800 @ 36 5 1/2 - 7 Mitsubishi Outlander
215/65R16 98H 221 on 6 1/2" 686 312 481 750 @ 36 6 - 7 1/2 Nissan X-Trail
215/60R17 96H 221 on 6 1/2" 690 314 478 710 @ 36 6 - 7 1/2 Nissan X-Trail
225/60R17 99H 228 on 6 1/2" 702 319 470 775 @ 36 6 - 8 Nissan X-Trail
225/65R18 103H 228 on 6 1/2" 749 341 440 875 @ 36 6 - 8 Nissan Murano
HIGHWAY TERRAIN

Grandtrek ST30

ASYMMETRIC
90% ON-ROAD; 10% OFF-ROAD

An all-season SUV tyre, the Dunlop Grandtrek ST30 has been specifically tuned to
deliver outstanding on-road performance as an Original Equipment tyre. With a specially
designed asymmetric pattern, the tyre delivers long life and supreme riding comfort.

Grip Handling Wet
Performance Performance Performance Low Noise

FEATURES BENEFITS
Asymmetric, all-season tread design Year-round traction and enhanced wet handling.
Circumferential tread grooves Clears water for excellent wet traction.
Jointless band technology Helps maintain the tyre’s shape, enabling
smooth performance at highway speeds.
Multi-pitch tread design Helps reduce noise for a quiet ride.

TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS PER SINGLE MAX APPROVED OE FITMENTS
DESIGNATION DESCRIPTION (MM) ON DESIGN DIAMETER LOADED KILOMETRE LOAD (KG) AT MAX RIM WIDTH
RIM (MM) RADIUS PRESSURE (PSI) (INCHES)
(MM)
225/65R17 102H 228 on 6 1/2" 724 329 455 850 @ 36 6 - 8 Toyota RAV4, Lexus NX
245/65R17 107S 248 on 7" 750 341 440 975 @ 36 7 - 8 1/2 Toyota Highlander
225/60R18 100H 228 on 6 1/2" 727 330 453 800 @ 36 6 - 8 Nissan X-Trail

74
