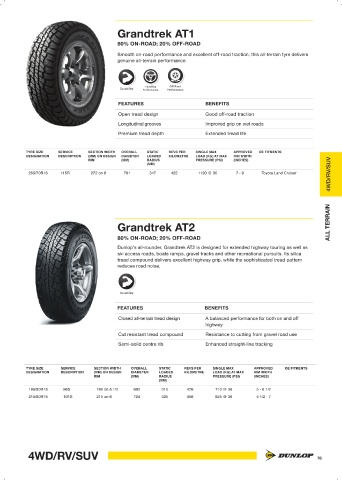

Page 79 - GDTNZ18_Product_Catalogue_2.1_Print_Ready_Neat

Grandtrek AT1

80% ON-ROAD; 20% OFF-ROAD

Smooth on-road performance and excellent off-road traction, this all-terrain tyre delivers
genuine all-terrain performance.

Handling O -Road
Durability Performance Performance
FEATURES BENEFITS

Open tread design Good off-road traction
Longitudinal grooves Improved grip on wet roads
Premium tread depth Extended tread life

TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS PER SINGLE MAX APPROVED OE FITMENTS
DESIGNATION DESCRIPTION (MM) ON DESIGN DIAMETER LOADED KILOMETRE LOAD (KG) AT MAX RIM WIDTH
4WD/RV/SUV
RIM (MM) RADIUS PRESSURE (PSI) (INCHES)
(MM)
265/70R16 115R 272 on 8 781 347 422 1120 @ 36 7 - 9 Toyota Land Cruiser

ALL TERRAIN

Grandtrek AT2

80% ON-ROAD; 20% OFF-ROAD

Dunlop's all-rounder, Grandtrek AT2 is designed for extended highway touring as well as
ski access roads, boats ramps, gravel tracks and other recreational pursuits. Its silica
tread compound delivers excellent highway grip, while the sophisticated tread pattern
reduces road noise.

Durability

FEATURES BENEFITS

Closed all-terrain tread design A balanced performance for both on and off
highway
Cut resistant tread compound Resistance to cutting from gravel road use
Semi-solid centre rib Enhanced straight-line tracking

TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS PER SINGLE MAX APPROVED OE FITMENTS
DESIGNATION DESCRIPTION (MM) ON DESIGN DIAMETER LOADED KILOMETRE LOAD (KG) AT MAX RIM WIDTH
RIM (MM) RADIUS PRESSURE (PSI) (INCHES)
(MM)
195/80R15 96S 196 on 5 1/2 693 315 476 710 @ 36 5 - 6 1/2
215/80R15 101S 215 on 6 724 325 456 825 @ 36 5 1/2 - 7

4WD/RV/SUV 78
