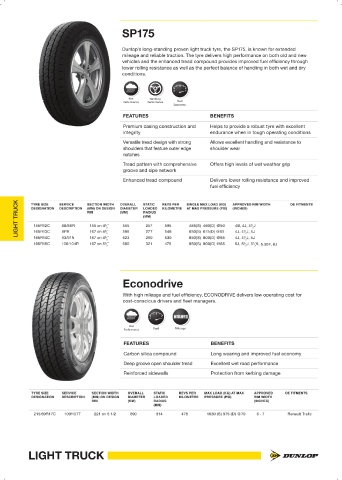

Page 92 - GDTNZ18_Product_Catalogue_2.1_Print_Ready_Neat

SP175

Dunlop’s long-standing proven light truck tyre, the SP175, is known for extended
mileage and reliable traction. The tyre delivers high performance on both old and new
vehicles and the enhanced tread compound provides improved fuel efficiency through
lower rolling resistance as well as the perfect balance of handling in both wet and dry
conditions.

Wet Handling
Performance Performance Fuel
Economy
FEATURES BENEFITS

Premium casing construction and Helps to provide a robust tyre with excellent
integrity endurance when in tough operating conditions
Versatile tread design with strong Allows excellent handling and resistance to
shoulders that feature outer edge shoulder wear
notches
Tread pattern with comprehensive Offers high levels of wet weather grip
groove and sipe network
Enhanced tread compound Delivers lower rolling resistance and improved
fuel efficiency

LIGHT TRUCK TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS PER SINGLE MAX LOAD (KG) APPROVED RIM WIDTH OE FITMENTS
AT MAX PRESSURE (PSI)
KILOMETRE
DESIGNATION
DIAMETER
(INCHES)
LOADED
DESCRIPTION
(MM) ON DESIGN
(MM)
RADIUS
RIM
(MM)
595
485(S) 460(D) @50
257
155 on 4¹⁄₂˝
555
155R12C
4B, 4J, 4¹⁄₂J
88/86R
165R13C
623
93/91N
290
530
850(S) 800(D) @65
167 on 4¹⁄₂˝
165R14C 8PR 167 on 4¹⁄₂˝ 598 277 548 650(S) 615(D) @55 4J, 4¹⁄₂J, 5J
4J, 4¹⁄₂J, 5J
195R15C 106/104R 197 on 5¹⁄₂˝ 690 321 478 950(S) 900(D) @65 5J, 5¹⁄₂J, 5¹⁄₂K, 5.50F, 6J
Econodrive
With high mileage and fuel efficiency, ECONODRIVE delivers low operating cost for
cost-conscious drivers and fleet managers.
Wet
Performance Fuel Mileage
Economy
FEATURES BENEFITS
Carbon silica compound Long wearing and improved fuel economy
Deep groove open shoulder tread Excellent wet road performance
Reinforced sidewalls Protection from kerbing damage

TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS PER MAX LOAD (KG) AT MAX APPROVED OE FITMENTS
DESIGNATION DESCRIPTION (MM) ON DESIGN DIAMETER LOADED KILOMETRE PRESSURE (PSI) RIM WIDTH
RIM (MM) RADIUS (INCHES)
(MM)
215/60R17C 109/107T 221 on 6 1/2 690 314 478 1030 (S) 975 (D) @70 6 - 7 Renault Trafic

LIGHT TRUCK
