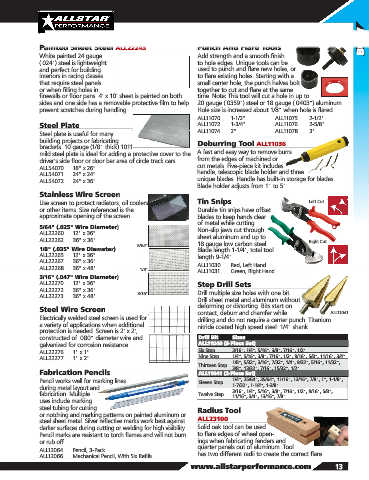

Page 15 - 2019 Allstar Performance Parts and Equipment Catalog

BODY

Painted Sheet Steel ALL22243 Punch And Flare Tools
White painted 24 gauge Add strength and a smooth finish
(.024") steel is lightweight to hole edges. Unique tools can be
and perfect for building used to punch and flare new holes, or
interiors in racing classes to flare existing holes. Starting with a
that require steel panels small center hole, the punch halves bolt
or when filling holes in together to cut and flare at the same
firewalls or floor pans. 4' x 10' sheet is painted on both time. Note: This tool will cut a hole in up to
sides and one side has a removable protective film to help 20 gauge (.0359") steel or 18 gauge (.0403") aluminum.
prevent scratches during handling. Hole size is increased about 1/8" when hole is flared.
ALL11070 ...... 1-1/2" ALL11075 ...... 2-1/2"
Steel Plate ALL11072 ...... 1-3/4" ALL11076 ...... 2-5/8"
ALL11074 ...... 2" ALL11078 ...... 3"
Steel plate is useful for many
building projects or fabricating
brackets. 10 gauge (1/8" thick) 1011 Deburring Tool ALL11036
mild steel plate is ideal for adding a protective cover to the A fast and easy way to remove burrs
driver’s side floor or door bar area of circle track cars. from the edges of machined or
cut metals. Five-piece kit includes
ALL54070 ..... 18" x 26"
ALL54071 ..... 24" x 24" handle, telescopic blade holder and three
ALL54072 ..... 24" x 36" unique blades. Handle has built-in storage for blades.
Blade holder adjusts from 1" to 5".
Stainless Wire Screen
Use screen to protect radiators, oil coolers Tin Snips Left Cut
or other items. Size referenced is the Durable tin snips have offset
approximate opening of the screen. blades to keep hands clear
of metal while cutting.
5/64" (.025" Wire Diameter) Non-slip jaws cut through
ALL22260 ..... 12" x 36" sheet aluminum and up to
ALL22262 ..... 36" x 36" Right Cut
5/64" 18 gauge low carbon steel.
1/8" (.035" Wire Diameter) Blade length 1-1/4", total tool
ALL22265 ..... 12" x 36" length 9-1/4".
ALL22267 ..... 36" x 36" ALL11030 ...... Red, Left Hand
ALL22268 ..... 36" x 48" 1/8"
ALL11031 ...... Green, Right Hand
3/16" (.047" Wire Diameter)
ALL22270 ..... 12" x 36" Step Drill Sets
ALL22272 ..... 36" x 36" Drill multiple size holes with one bit.
ALL22273 ..... 36" x 48" 3/16"
Drill sheet metal and aluminum without
Steel Wire Screen deforming or distorting. Bits start on
contact, deburr and chamfer while ALL11041
Electrically welded steel screen is used for drilling and do not require a center punch. Titanium
a variety of applications when additional nitride coated high speed steel. 1/4" shank.
protection is needed. Screen is 2' x 2',
constructed of .080" diameter wire and Drill Bit Sizes
galvanized for corrosion resistance. ALL11040 (3-Piece Set)
Six Step 3/16", 1/4", 5/16", 3/8", 7/16", 1/2"
ALL22276 ..... 1" x 1" Nine Step 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4"
ALL22277 ..... 1" x 2" 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32",
Thirteen Step
3/8", 13/32", 7/16", 15/32", 1/2"
Fabrication Pencils ALL11041 (2-Piece Set)
Pencil works well for marking lines Eleven Step 1/4", 25/64", 35/64", 11/16", 13/16", 7/8", 1", 1-1/8",
during metal layout and 1-7/32", 1-1/4", 1-3/8"
fabrication. Multiple Twelve Step 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8",
11/16", 3/4", 13/16", 7/8"
uses include marking
steel tubing for cutting Radius Tool
or notching and marking patterns on painted aluminum or
steel sheet metal. Silver reflective marks work best against ALL23100
darker surfaces during cutting or welding for high visibility. Solid oak tool can be used
Pencil marks are resistant to torch flames and will not burn to flare edges of wheel open-
or rub off. ings when fabricating fenders and
ALL12064 ..... Pencil, 3-Pack quarter panels out of aluminum. Tool
ALL12066 ..... Mechanical Pencil, With Six Refills has two different radii to create the correct flare.
www.allstarperformance.com 13
