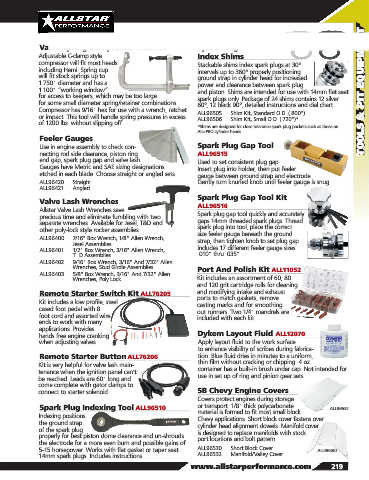

Page 221 - 2019 Allstar Performance Parts and Equipment Catalog

Valve Spring Compressor ALL96490 Spark Plug
Adjustable C-clamp style Index Shims
compressor will fit most heads Stackable shims index spark plugs at 30°
including Hemi. Spring cup intervals up to 360° properly positioning
will fit stock springs up to ground strap in cylinder head for increased
1.750" diameter and has a power and clearance between spark plug
1.100" “working window” and piston. Shims are intended for use with 14mm flat seat TOOLS & PIT EQUIPMENT
for access to keepers, which may be too large spark plugs only. Package of 24 shims contains 12 silver
for some small diameter spring/retainer combinations. 60°, 12 black 90°, detailed instructions and dial chart.
Compressor has 9/16" hex for use with a wrench, ratchet ALL96505 ..... Shim Kit, Standard O.D. (.800")
or impact. This tool will handle spring pressures in excess ALL96506 ..... Shim Kit, Small O.D. (.720")*
of 1200 lbs. without slipping off.
*Shims are designed for close tolerance spark plug pockets such as those on
ALL-PRO cylinder heads.
Feeler Gauges
Use in engine assembly to check con- Spark Plug Gap Tool
necting rod side clearance, piston ring ALL96515
end gap, spark plug gap and valve lash. Used to set consistent plug gap.
Gauges have Metric and SAE sizing designations Insert plug into holder, then put feeler
etched in each blade. Choose straight or angled sets. gauge between ground strap and electrode.
ALL96420 ..... Straight Gently turn knurled knob until feeler gauge is snug.
ALL96421 ..... Angled
Spark Plug Gap Tool Kit
Valve Lash Wrenches
ALL96516
Allstar Valve Lash Wrenches save
precious time and eliminate fumbling with two Spark plug gap tool quickly and accurately
separate wrenches. Available for Jesel, T&D and gaps 14mm threaded spark plugs. Thread
other poly-lock style rocker assemblies. spark plug into tool, place the correct
size feeler gauge beneath the ground
ALL96400 .... 7/16" Box Wrench, 1/8" Allen Wrench,
Jesel Assemblies strap, then tighten knob to set plug gap.
ALL96401 ..... 1/2" Box Wrench, 3/16" Allen Wrench, Includes 17 different feeler gauge sizes
T D Assemblies .010" thru .035".
ALL96402..... 9/16" Box Wrench, 3/16" And 7/32" Allen
Wrenches, Stud Girdle Assemblies Port And Polish Kit ALL11052
ALL96403..... 5/8" Box Wrench, 3/16" And 7/32" Allen
Wrenches, Poly Lock Kit includes an assortment of 60, 80
and 120 grit cartridge rolls for cleaning
Remote Starter Switch Kit ALL76205 and modifying intake and exhaust
ports to match gaskets, remove
Kit includes a low profile, steel
cased foot pedal with 8 casting marks and for smoothing
foot cord and assorted wire out runners. Two 1/4" mandrels are
ends to work with many included with each kit.
applications. Provides
hands free engine cranking Dykem Layout Fluid ALL12070
when adjusting valves. Apply layout fluid to the work surface
to enhance visibility of scribes during fabrica-
Remote Starter Button ALL76206 tion. Blue fluid dries in minutes to a uniform,
Kit is very helpful for valve lash main- thin film without cracking or chipping. 4 oz.
tenance when the ignition panel can’t container has a built-in brush under cap. Not intended for
be reached. Leads are 60" long and use in set up of ring and pinion gear sets.
come complete with gator clamps to
connect to starter solenoid. SB Chevy Engine Covers
Covers protect engines during storage
Spark Plug Indexing Tool ALL96510 or transport. 1/8" thick polycarbonate ALL96532
material is formed to fit most small block
Indexing positions
the ground strap Chevy applications. Short block cover fastens over
of the spark plug cylinder head alignment dowels. Manifold cover
properly for best piston dome clearance and un-shrouds is designed to replace manifolds with stock
the electrode for a more even burn and possible gains of port locations and bolt pattern.
5-15 horsepower. Works with flat gasket or taper seat ALL96530 ..... Short Block Cover ALL96530
14mm spark plugs. Includes instructions. ALL96532 ..... Manifold/Valley Cover
www.allstarperformance.com 219
