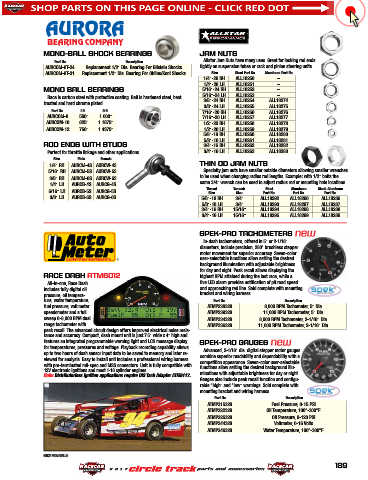

Page 190 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

MONO-BALL SHOCK BEARINGS JAM NUTS
Part No. Description Allstar Jam Nuts have many uses. Great for locking rod ends
AURCOM-8T-24 Replacement 1/2" Dia. Bearing For Bilstein Shocks tightly on suspension tubes or rack and pinion steering units.
AURCOM-8T-31 Replacement 1/2" Dia. Bearing For Ohlins/Koni Shocks Size Steel Part No. Aluminum Part No.
1/4"-28 RH ALL18250 –
1/4"-28 LH ALL18251 –
MONO BALL BEARINGS 5/16"-24 RH ALL18252 –
Race is carbon steel with protective coating. Ball is hardened steel, heat 5/16"-24 LH ALL18253 –
treated and hard chrome plated. 3/8"-24 RH ALL18254 ALL18274
ALL18275
3/8"-24 LH
ALL18255
Part No. I.D. O.D. 7/16"-20 RH ALL18256 ALL18276
AURCOM-8 .500" 1.000" 7/16"-20 LH ALL18257 ALL18277
AURCOM-10 .625" 1.1875" 1/2"-20 RH ALL18258 ALL18278
AURCOM-12 .750" 1.4375" 1/2"-20 LH ALL18259 ALL18279
5/8"-18 RH ALL18260 ALL18280
5/8"-18 LH ALL18261 ALL18281
ROD ENDS WITH STUDS 3/4"-16 RH ALL18262 ALL18282
Perfect for throttle linkage and other applications. 3/4"-16 LH ALL18263 ALL18283
Size Male Female
1/4" RH AURCM-4S AURCW-4S THIN OD JAM NUTS
5/16" RH AURCM-5S AURCW-5S Specialty jam nuts have smaller outside diameters allowing smaller wrenches
3/8" RH AURCM-6S AURCW-6S to be used when changing radius rod lengths. Example: with 1/2" bolts the
1/4" LH AURCB-4S AURCG-4S same 3/4" wrench can be used to adjust radius rod or mounting hole locations.
Steel
5/16" LH AURCB-5S AURCG-5S Thread Wrench Part No. Aluminum Black Aluminum
Part No.
Size
Part No.
Size
3/8" LH AURCB-6S AURCG-6S 5/8"-18 RH 3/4" ALL18292 ALL18296 ALL18286
5/8"-18 LH 3/4" ALL18293 ALL18297 ALL18287
3/4"-16 RH 15/16" ALL18294 ALL18298 ALL18288
3/4"-16 LH 15/16" ALL18295 ALL18299 ALL18289
SPEK-PRO TACHOMETERS
In-dash tachometers, offered in 5" or 2-1/16"
diameters, include precision, 280° brushless stepper
motor movement for superior accuracy. Seven-color
user-selectable functions allow setting the desired
background illumination with adjustable brightness
for day and night. Peak recall allows displaying the
RACE DASH ATM6012 highest RPM attained during the last race, while a
All-in-one, Race Dash five LED alarm provides notification of pit road speed
includes fully digital oil and approaching red line. Sold complete with mounting
pressure, oil tempera- bracket and wiring harness.
ture, water temperature, Part No. Description
fuel pressure, volt meter ATMP238328 8,000 RPM Tachometer, 5" Dia.
speedometer and a full ATMP239328 11,000 RPM Tachometer, 5" Dia.
sweep 0-8,000 RPM dual ATMP334328 8,000 RPM Tachometer, 2-1/16" Dia.
range tachometer with ATMP336328 11,000 RPM Tachometer, 2-1/16" Dia.
peak recall. The advanced circuit design offers improved electrical noise resis-
tance and accuracy. Compact, dash mount unit is just 7.5" wide x 4" high and
features an integrated programmable warning light and LCD message display SPEK-PRO GAUGES
for temperatures, pressures and voltage. Playback recording capability allows Advanced, 2-1/16" dia. digital stepper motor gauges
up to two hours of dash sensor input data to be saved to memory and later re- combine superior readability and dependability with a
viewed for analysis. Easy to install unit includes a professional wiring harness competition appearance. Seven-color user-selectable
with pre-terminated mil-spec and MSS connectors. Unit is fully compatible with functions allow setting the desired background illu-
12V electronic ignitions and most 1-16 cylinder engines.
Note: Distributorless Ignition applications require DIS Tach Adapter ATM9117. minations with adjustable brightness for day or night.
Gauges also include peak recall function and configu-
rable “high" and “low" warnings. Sold complete with
mounting bracket and wiring harness.
Part No. Description
ATMP315328 Fuel Pressure, 0-15 PSI
ATMP322328 Oil Temperature, 100°-300°F.
ATMP325328 Oil Pressure, 0-120 PSI
ATMP344328 Voltmeter, 0-16 Volts
ATMP346328 Water Temperature, 100°-300°F.

MIKE MONGIELLO
189
