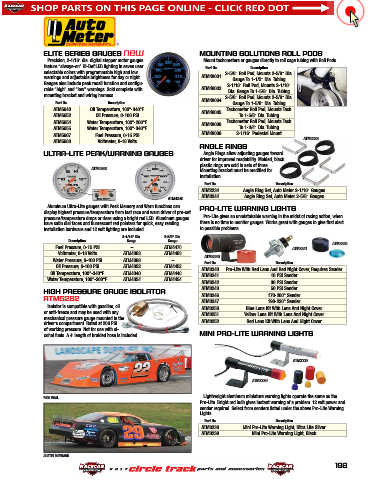

Page 194 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

ELITE SERIES GAUGES MOUNTING SOLUTIONS ROLL PODS
Precision, 2-1/16" dia. digital stepper motor gauges Mount tachometers or gauges directly to roll cage tubing with Roll Pods.
feature “always-on” Hi-Def LED lighting in seven user Part No. Description
selectable colors with programmable high and low 2-5/8" Roll Pod, Mounts 2-5/8" Dia.
warnings and adjustable brightness for day or night. ATM48001 Gauge To 1-1/2" Dia. Tubing
Gauges also include peak recall function and configu- 2-1/16" Roll Pod, Mounts 2-1/16"
rable “high” and “low” warnings. Sold complete with ATM48003 Dia. Gauge To 1-5/8" Dia. Tubing
mounting bracket and wiring harness. 2-5/8" Roll Pod, Mounts 2-5/8" Dia.
ATM48004
Part No. Description Gauge To 1-5/8" Dia. Tubing
ATM5640 Oil Temperature, 100°-340°F. Tachometer Roll Pod, Mounts Tach
ATM5652 Oil Pressure, 0-100 PSI ATM48005 To 1-5/8" Dia. Tubing
ATM5654 Water Temperature, 100°-260°F. ATM48008 Tachometer Roll Pod, Mounts Tach
ATM5655 Water Temperature, 100°-340°F. To 1-3/4" Dia. Tubing
ATM5667 Fuel Pressure, 0-15 PSI ATM48009 2-1/16" Pedestal Mount
ATM5683 Voltmeter, 8-18 Volts ATM2234
ANGLE RINGS
ULTRA-LITE PEAK/WARNING GAUGES Angle Rings allow adjusting gauges toward
driver for improved readability. Molded, black
plastic rings are sold in sets of three.
ATM4383
Mounting bracket must be modified for
installation.
Part No. Description
ATM2234 Angle Ring Set, Auto Meter 2-1/16" Gauges
ATM3244 Angle Ring Set, Auto Meter 2-5/8" Gauges
ATM4340
Aluminum Ultra-Lite gauges with Peak Memory and Warn functions can PRO-LITE WARNING LIGHTS
display highest pressure/temperature from last race and warn driver of pre-set
pressure/temperature drops or rises using a bright red LED. Aluminum gauges Pro-Lite gives an unmistakable warning in the midst of racing action, when
have satin dial faces and fluorescent red pointers for quick, easy reading. there is no time to monitor gauges. Works great with gauges to give first alert
Installation hardware and 12 volt lighting are included. to possible problems.
2-1/16" Dia. 2-5/8" Dia.
Description Gauge Gauge
Fuel Pressure, 0-15 PSI – ATM4470 ATM3241 ATM3250
Voltmeter, 8-18 Volts ATM4383 ATM4483
Water Pressure, 0-100 PSI ATM4368 – ATM3240 Description
Part No.
Oil Pressure, 0-100 PSI ATM4352 ATM4452 ATM3240 Pro-Lite With Red Lens And Red Night Cover, Requires Sender
Oil Temperature, 100°-340°F. ATM4340 ATM4440 ATM3241 18 PSI Sender
Water Temperature, 100°-260°F. ATM4354 ATM4454
ATM3242 30 PSI Sender
50 PSI Sender
HIGH PRESSURE GAUGE ISOLATOR ATM3243 170-200° Sender
ATM3246
ATM5282 ATM3247 190-220° Sender
Isolator is compatible with gasoline, oil ATM3250 Blue Lens Kit With Lens And Night Cover
or anti-freeze and may be used with any ATM3251 Yellow Lens Kit With Lens And Night Cover
mechanical pressure gauge mounted in the
driver's compartment. Rated at 200 PSI ATM3252 Red Lens Kit With Lens And Night Cover
of working pressure. Not for use with al-
cohol fuels. A 4' length of braided hose is included. MINI PRO-LITE WARNING LIGHTS

ATM3238

ATM3239

RICH BOAL Lightweight aluminum miniature warning lights operate the same as the
Pro-Lite. Bright red bulb gives instant warning of a problem. 12 volt power and
sender required. Select from senders listed under the above Pro-Lite Warning
Lights.
Part No. Description
ATM3238 Mini Pro-Lite Warning Light, Ultra Lite Silver
ATM3239 Mini Pro-Lite Warning Light, Black

AUSTIN MAYNARD
