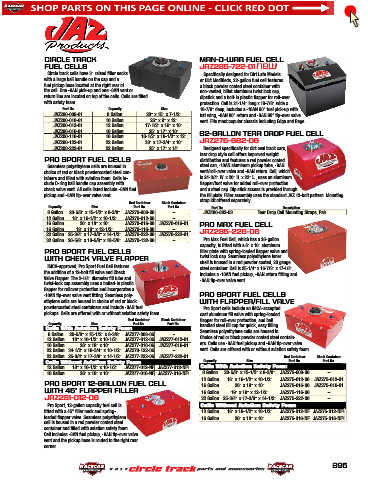

Page 396 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

CIRCLE TRACK MAN-O-WAR FUEL CELL
FUEL CELLS JAZ285-722-01
Circle track cells have 3" raised filler necks Specifically designed for Dirt Late Models
with a large bail handle on the cap and a or Dirt Modifieds, 22-gallon fuel cell features
fuel pickup hose located at the right rear of a black powder coated steel container with
the cell. One -8AN pick-up and one -8AN vent or non-vented, billet aluminum twist lock cap,
return line are located on top of the cells. Cells are filled dipstick and a bolt-in plastic flapper for roll-over
with safety foam. protection. Cell is 21-1/4" long x 18-7/8" wide x
Part No. Capacity Size 18-7/8" deep, includes a -10AN 90° fuel pick-up with
JAZ200-008-01 8 Gallon 20" x 15" x 7-1/2" bat wing, -8AN 90° return and -8AN 90° tip-over valve
JAZ200-010-01 10 Gallon 25" x 9" x 12" vent. Fits most popular chassis including Edge and Rage.
JAZ200-012-01 12 Gallon 17-1/2" x 16" x 10"
JAZ200-016-01 16 Gallon 25" x 17" x 10" 32-GALLON TEAR DROP FUEL CELL
JAZ200-116-01 16 Gallon 18-1/2" x 18-1/2" x 12"
JAZ200-122-01 22 Gallon 33" x 17-3/4" x 10" JAZ275-632-06
JAZ200-222-01 22 Gallon 25" x 17" x 14" Designed specifically for dirt oval track cars,
tear drop style cell offers improved weight
PRO SPORT FUEL CELLS distribution and features a red powder coated
Seamless polyethylene cells are housed in steel can, -10AN aluminum pickup tube, -8AN
choice of red or black powdercoated steel con- vent/roll-over valve and -8AN return. Cell, which
tainers and filled with aviation foam. Cells in- is 24-3/4" W. x 20" H. x 23" L., uses an aluminum
clude D-ring bail handle cap assembly with flapper/foot valve for added roll-over protection
check valve vent. All cells listed include -8AN fuel and a steel cap. Dip stick access is provided through
pickup and -8AN tip-over valve vent. the fill plate. Filler assembly uses the standard JAZ 12-bolt pattern. Mounting
Red Container Black Container strap kit offered separately.
Capacity Size Part No. Part No. Part No. Description
8 Gallon 20-5/8" x 15-1/2" x 8-3/8" JAZ270-008-06 – JAZ400-632-03 Tear Drop Cell Mounting Straps, Pair
12 Gallon 18" x 16-1/2" x 10-1/2" JAZ270-012-06 –
16 Gallon 26" x 18" x 10" JAZ270-016-06 JAZ270-016-01 PRO MAX FUEL CELL
16 Gallon 19" x 19" x 12-1/2" JAZ270-116-06 – JAZ285-226-06
22 Gallon 25-3/4" x 17-3/8" x 14-1/2" JAZ270-222-06 JAZ270-222-01
32 Gallon 26-5/8" x 18-5/8" x 18-5/8" JAZ270-132-06 – Pro Max Fuel Cell, which has a 26-gallon
capacity, is fitted with a 6" x 10" aluminum
PRO SPORT FUEL CELLS filler plate with spring-loaded flapper valve and
WITH CHECK VALVE FLAPPER twist lock cap. Seamless polyethylene inner
shell is housed in a red powder coated, 20 gauge
IMCA-approved, Pro Sport Fuel Cell features steel container. Cell is 25-1/4" x 16-7/8" x 17-1/4",
the addition of a 12-bolt fill valve and Check includes a -10AN fuel pickup, -8AN return fitting and
Valve Flapper. The 2-1/4" diameter fill tube and -8AN tip-over valve vent.
twist-lock cap assembly uses a bolted-in plastic
flapper for rollover protection and incorporates a
-10AN tip-over valve vent fitting. Seamless poly- PRO SPORT FUEL CELLS
ethylene cells are housed in choice of red or black WITH FLAPPER/FILL VALVE
powdercoated steel containers and include -8AN fuel Pro Sport cells include an IMCA-accepted
pickups. Cells are offered with or without aviation safety foam. cast aluminum fill valve with spring-loaded
Red Container Black Container flapper for roll-over protection, and bail
Capacity Size Part No. Part No. handled steel fill cap for quick, easy filling.
Cells With Aviation Safety Foam Seamless polyethylene cells are housed in
8 Gallon 20-5/8" x 15-1/2" x 8-3/8" JAZ277-008-06 -
12 Gallon 18" x 16-1/2" x 10-1/2" JAZ277-012-06 JAZ277-012-01 Choice of red or black powder coated steel contain-
16 Gallon 26" x 18" x 10" JAZ277-016-06 JAZ277-016-01 ers. Cells use -8AN fuel pickup and -8AN tip-over valve
22 Gallon 34-1/2" x 18-3/4" x 10-1/2" JAZ270-122-06 – vent. Cells are offered with or without aviation safety foam.
22 Gallon 25-3/4" x 17-3/8" x 14-1/2" JAZ277-222-06 JAZ277-222-01 Red Container Black Container
Cells Without Aviation Safety Foam Capacity Size Part No. Part No.
12 Gallon 18" x 16-1/2" x 10-1/2" JAZ277-012-NF JAZ277-012-NF1 Cells With Aviation Safety Foam
16 Gallon 26" x 18" x 10" JAZ277-016-NF JAZ277-016-NF1 8 Gallon 20-5/8" x 15-1/2" x 8-3/8" JAZ275-008-06 –
12 Gallon 18" x 16-1/2" x 10-1/2" JAZ275-012-06 JAZ275-012-01
PRO SPORT 12-GALLON FUEL CELL 16 Gallon 26" x 18" x 10" JAZ275-016-06 JAZ275-016-01
WITH 45° FLAPPER FILLER 16 Gallon 19" x 19" x 12-1/2" JAZ275-116-06 –
JAZ281-012-06 22 Gallon 25-3/4" x 17-3/8" x 14-1/2" JAZ275-222-06 –
Pro Sport, 12-gallon capacity fuel cell is Cells Without Aviation Safety Foam
fitted with a 45° filler neck and spring- 12 Gallon 18" x 16-1/2" x 10-1/2" JAZ275-012-NF JAZ275-012-NF1
loaded flapper valve. Seamless polyethylene 16 Gallon 26" x 18" x 10" JAZ275-016-NF JAZ275-016-NF1
cell is housed in a red powder coated steel
container and filled with aviation safety foam.
Cell includes -8AN fuel pickup, -8AN tip-over valve
vent and the pickup hose is routed to the right rear
corner.
