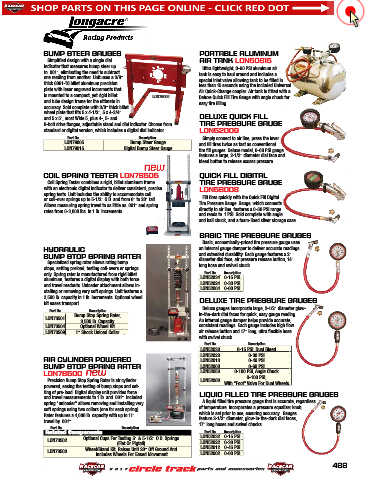

Page 434 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

BUMP STEER GAUGES PORTABLE ALUMINUM
Simplified design with a single dial AIR TANK LON50315
indicator that measures bump steer up Ultra lightweight, 0-60 PSI aluminum air
to .001", eliminating the need to subtract tank is easy to haul around and includes a
one reading from another. Unit uses a 3/8" special inlet valve allowing tank to be filled in
thick 6061-T6 billet aluminum precision less than 15 seconds using the included Universal
plate with laser engraved increments that Air Quick-Change coupler. Air tank is fitted with a
is mounted to a compact, yet rigid billet LON79005 Deluxe Quick Fill Tire Gauge with angle chuck for
and tube design frame for the ultimate in easy tire filling.
accuracy. Sold complete with 3/8" thick billet
wheel plate that fits 5 x 4-1/2", 5 x 4-3/4"
and 5 x 5", most Wide 5, plus 4-, 5- and DELUXE QUICK FILL
8-bolt drive flanges, adjustable stand and dial indicator. Choose from TIRE PRESSURE GAUGE
standard or digital version, which includes a digital dial indicator. LON52009
Part No. Description Simply connect to air line, press the lever
LON79005 Bump Steer Gauge and fill tires twice as fast as conventional
LON79015 Digital Bump Steer Gauge tire fill gauges. Deluxe model, 0-60 PSI gauge
features a large, 2-1/2" diameter dial face and
bleed button to release excess pressure.

COIL SPRING TESTER LON73505 QUICK FILL DIGITAL
Coil Spring Tester combines a rigid, billet aluminum frame TIRE PRESSURE GAUGE
with an electronic digital indicator to deliver consistent, precise LON53008
spring tests. Unit includes the ability to accommodate coil
Fill tires quickly with the Quick Fill Digital
or coil-over springs up to 5-1/2" O.D. and from 6" to 20" tall. Tire Pressure Gauge. Gauge, which connects
Allows measuring spring travel to as little as .001" and spring
rates from 0-3,000 lbs. in 1 lb. increments. directly to air line, features a 0-60 PSI range
and reads to .1 PSI. Sold complete with angle
and ball chuck, and a foam-lined silver storage case.
BASIC TIRE PRESSURE GAUGES
Basic, economically-priced tire pressure gauge uses
HYDRAULIC an internal gauge damper to deliver accurate readings
BUMP STOP SPRING RATER and extended durability. Each gauge features a 2"
Specialized spring rater allows rating bump diameter dial face, air pressure release button, 14"
long hose and swivel chuck.
stops, setting preload, testing coil-overs or springs
only. Spring rater is manufactured from rigid billet Part No. Description
aluminum, features a digital display with both force LON52034 0-15 PSI
LON52024 0-30 PSI
and travel readouts. Unloader attachment allows in- LON52004 0-60 PSI
stalling or removing very soft springs. Unit features a
3,500 lb. capacity in 1 lb. increments. Optional wheel DELUXE TIRE PRESSURE GAUGES
kit eases transport.
Part No. Description Deluxe gauges incorporate large, 2-1/2" diameter glow-
Bump Stop Spring Rater, in-the-dark dial faces for quick, easy gauge reading.
LON73501 An internal gauge damper helps provide accurate,
3,500 lb. Capacity
LON73504 Optional Wheel Kit consistent readings. Each gauge includes high flow
LON73509 1" Shock Unload Collar air release button and 17" long, ultra flexible hose
with swivel chuck.
Part No. Description
LON52033 0-15 PSI, Dual Bleed
LON52023 0-30 PSI
AIR CYLINDER POWERED LON52013 0-40 PSI
BUMP STOP SPRING RATER LON52003 0-60 PSI
LON73500 LON52053 0-100 PSI, Angle Chuck
0-100 PSI,
Precision Bump Stop Spring Rater is air cylinder LON52063 With “Foot” Valve For Dual Wheels
powered, easing the testing of bump stops and set-
ting of pre-load. Digital display unit provides force LIQUID FILLED TIRE PRESSURE GAUGES
and travel measurements to 1 lb. and .001". Included
spring “unloader” allows removing and installing very A liquid filled tire pressure gauge that is accurate, regardless
soft springs using two collars (one for each spring). of temperature. Incorporates a pressure equalizer knob,
Rater features a 4,000 lb. capacity with up to 11" which is set prior to use, ensuring accuracy. Gauges
travel by .001". feature 2-1/2" diameter, glow-in-the-dark dial faces,
Part No. Description 17" long hoses and swivel chucks.
Related Components Part No. Description
Optional Cups For Testing 5" & 5-1/2" O.D. Springs LON52032 0-15 PSI
LON73502 LON52022 0-30 PSI
(Flat Or Pigtail)
Wheel/Stand Kit, Raises Unit 20" Off Ground And LON52012 0-45 PSI
LON73503 LON52002 0-60 PSI
Includes Wheels For Eased Movement
433
