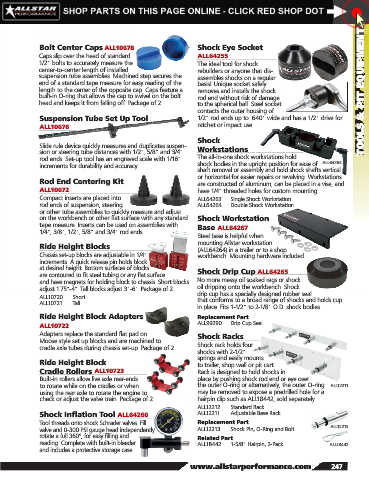

Page 249 - 2020 Allstar Performance Parts and Equipment Catalog

Bolt Center Caps ALL10678 Shock Eye Socket
Caps slip over the head of standard ALL64255
1/2" bolts to accurately measure the The ideal tool for shock
center-to-center length of installed rebuilders or anyone that dis-
suspension tube assemblies. Machined step secures the assembles shocks on a regular
end of a standard tape measure for easy reading of the basis! Unique socket safely
length to the center of the opposite cap. Caps feature a removes and installs the shock TOOLS & PIT EQUIPMENT
built-in O-ring that allows the cap to swivel on the bolt rod end without risk of damage
head and keeps it from falling off. Package of 2. to the spherical ball. Steel socket
contacts the outer housing of
Suspension Tube Set Up Tool 1/2" rod ends up to .640" wide and has a 1/2" drive for
ALL10676 ratchet or impact use.
Shock
Slide rule device quickly measures and duplicates suspen- Workstations
sion or steering tube distances with 1/2", 5/8" and 3/4"
rod ends. Set-up tool has an engraved scale with 1/16" The all-in-one shock workstations hold ALL64264
increments for durability and accuracy. shock bodies in the upright position for ease of
shaft removal or assembly and hold shock shafts vertical
or horizontal for easier repairs or revalving. Workstations
Rod End Centering Kit
are constructed of aluminum, can be placed in a vise, and
ALL10672 have 1/4" threaded holes for custom mounting.
Compact inserts are placed into ALL64263 ..... Single Shock Workstation
rod ends of suspension, steering ALL64264 ..... Double Shock Workstation
or other tube assemblies to quickly measure and adjust
on the workbench or other flat surface with any standard Shock Workstation
tape measure. Inserts can be used on assemblies with Base ALL64267
1/4", 3/8", 1/2", 5/8" and 3/4" rod ends.
Steel base is helpful when
mounting Allstar workstation
Ride Height Blocks (ALL64264) in a trailer or to a shop
Chassis set-up blocks are adjustable in 1/4" workbench. Mounting hardware included.
increments. A quick release pin holds block
at desired height. Bottom surfaces of blocks Shock Drip Cup ALL64265
are contoured to fit steel tubing or any flat surface
and have magnets for holding block to chassis. Short blocks No more messy oil soaked rags or shock
adjust 1.75"-4". Tall blocks adjust 3"-6". Package of 2. oil dripping onto the workbench. Shock
drip cup has a specially designed rubber seal
ALL10720 ..... Short that conforms to a broad range of shocks and holds cup
ALL10721 ..... Tall
in place. Fits 1-1/2" to 2-1/8" O.D. shock bodies.
Ride Height Block Adapters Replacement Part
ALL99290 ..... Drip Cup Seal
ALL10722
Adapters replace the standard flat pad on Shock Racks
Moose style set up blocks and are machined to
cradle axle tubes during chassis set-up. Package of 2. Shock rack holds four
shocks with 2-1/2"
springs and easily mounts
Ride Height Block
to trailer, shop wall or pit cart.
Cradle Rollers ALL10723 Rack is designed to hold shocks in
Built-in rollers allow live axle rear-ends place by pushing shock rod end or eye over
to rotate while on the cradles or when the outer O-ring or alternatively, the outer O-ring ALL12211
using the rear axle to rotate the engine to may be removed to expose a predrilled hole for a
check or adjust the valve train. Package of 2. hairpin clip such as ALL18442, sold separately.
ALL12212 ...... Standard Rack
Shock Inflation Tool ALL64260 ALL12211 ...... Adjustable Base Rack
Tool threads onto shock Schrader valves. Fill Replacement Part
valve and 0-300 PSI gauge head independently ALL12213 ...... Shock Pin, O-Ring and Bolt ALL12213
rotate a full 360°, for easy filling and Related Part
reading. Complete with built-in bleeder ALL18442 ..... 1-5/8" Hairpin, 2-Pack ALL18442
and includes a protective storage case.

www.allstarperformance.com 247
