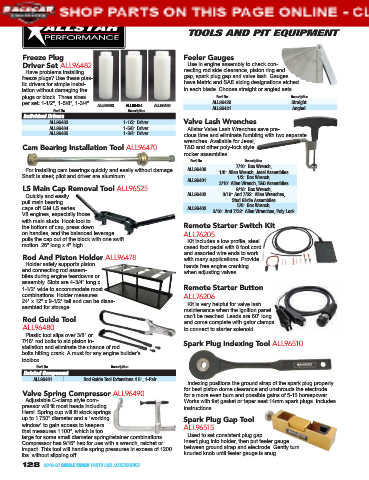

Page 132 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog
P. 132
TOOLS AND PIT EQUIPMENT
Freeze Plug Feeler Gauges
Driver Set ALL96482 Use in engine assembly to check con-
Have problems installing necting rod side clearance, piston ring end
freeze plugs? Use these plas- gap, spark plug gap and valve lash. Gauges
tic drivers for simple instal- have Metric and SAE sizing designations etched
lation without damaging the in each blade. Choose straight or angled sets.
plugs or block. Three sizes Part No. Description
per set: 1-1/2", 1-5/8", 1-3/4". ALL96483 ALL96484 ALL96485 ALL96420 Straight
ALL96421
Angled
Part No. Description
Individual Drivers
ALL96483 1-1/2" Driver Valve Lash Wrenches
ALL96484 1-5/8" Driver Allstar Valve Lash Wrenches save pre-
ALL96485 1-3/4" Driver cious time and eliminate fumbling with two separate
wrenches. Available for Jesel,
Cam Bearing Installation Tool ALL96470 T&D and other poly-lock style
rocker assemblies.
Part No. Description
7/16" Box Wrench,
For installing cam bearings quickly and easily without damage. ALL96400 1/8" Allen Wrench, Jesel Assemblies
Shaft is steel; pilot and driver are aluminum. 1/2" Box Wrench,
ALL96401
3/16" Allen Wrench, T&D Assemblies
LS Main Cap Removal Tool ALL96525 9/16" Box Wrench,
Quickly and easily ALL96402 3/16" And 7/32" Allen Wrenches,
pull main bearing Stud Girdle Assemblies
5/8" Box Wrench,
caps off GM LS series ALL96403 3/16" And 7/32" Allen Wrenches, Poly Lock
V8 engines, especially those
with main studs. Hook tool to
the bottom of cap, press down Remote Starter Switch Kit
on handles, and the balanced leverage ALL76205
pulls the cap out of the block with one swift .LW LQFOXGHV D ORZ SUR¿OH VWHHO
motion. 26" long x 4" high. cased foot pedal with 8 foot cord
and assorted wire ends to work
Rod And Piston Holder ALL96478 with many applications. Provide
Holder safely supports piston hands free engine cranking
and connecting rod assem- when adjusting valves.
blies during engine teardowns or
assembly. Slots are 4-3/4" long x
1-1/2" wide to accommodate most Remote Starter Button
combinations. Holder measures ALL76206
24" x 12" x 9-1/2" tall and can be disas- Kit is very helpful for valve lash
sembled for storage. maintenance when the ignition panel
can’t be reached. Leads are 60" long
Rod Guide Tool and come complete with gator clamps
ALL96480 to connect to starter solenoid.
Plastic tool slips over 3/8" or
7/16" rod bolts to aid piston in- Spark Plug Indexing Tool ALL96510
stallation and eliminate the chance of rod
bolts hitting crank. A must for any engine builder’s
toolbox.
Part No. Description
Related Component
ALL96481 Rod Guide Tool Extensions 4.5", 1-Pair
Indexing positions the ground strap of the spark plug properly
for best piston dome clearance and unshrouds the electrode
Valve Spring Compressor ALL96490 for a more even burn and possible gains of 5-15 horsepower.
Adjustable C-clamp style com- :RUNV ZLWK ÀDW JDVNHW RU WDSHU VHDW PP VSDUN SOXJV ,QFOXGHV
SUHVVRU ZLOO ¿W PRVW KHDGV LQFOXGLQJ instructions.
+HPL 6SULQJ FXS ZLOO ¿W VWRFN VSULQJV
up to 1.750" diameter and a “working Spark Plug Gap Tool
window” to gain access to keepers ALL96515
that measures 1.100", which is too
large for some small diameter spring/retainer combinations. Used to set consistent plug gap.
Compressor has 9/16" hex for use with a wrench, ratchet or Insert plug into holder, then put feeler gauge
impact. This tool will handle spring pressures in excess of 1200 between ground strap and electrode. Gently turn
lbs. without slipping off. knurled knob until feeler gauge is snug.
128 2019-20 CIRCLE TRACK PARTS AND ACCESSORIES
