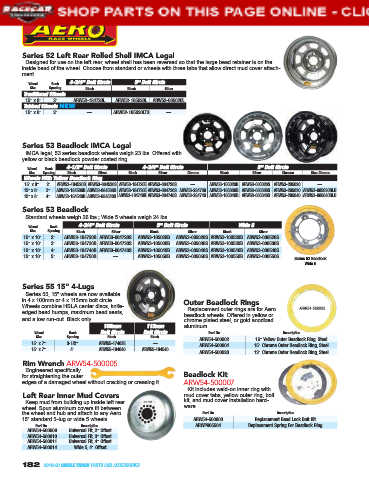

Page 186 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

Series 52 Left Rear Rolled Shell IMCA Legal
Designed for use on the left rear, wheel shell has been reversed so that the large bead retainer is on the
inside bead of the wheel. Choose from standard or wheels with three tabs that allow direct mud cover attach-
ment.
4-3/4" Bolt Circle 5" Bolt Circle
Wheel Back
Size Spacing Black Black Silver
Traditional Wheels
15" x 8" 2" ARW52-184720L ARW52-185020L ARW52-085020L
Tabbed Wheels
15" x 8" 2" — ARW52-185020LT3 —

Series 53 Beadlock IMCA Legal
IMCA legal, 53 series beadlock wheels weigh 23 lbs. Offered with
yellow or black beadlock powder coated ring.
4-1/2" Bolt Circle 4-3/4" Bolt Circle 5" Bolt Circle
Wheel Back
Size Spacing Black Silver Black Silver Chrome Black Silver Chrome Blue Chrome
Wheels With Yellow Beadlock Ring
15" x 8" 2" ARW53-184520B ARW53-084520S ARW53-184720B ARW53-084720S — ARW53-185020B ARW53-085020S ARW53-285020 —
15" x 8" 3" ARW53-184530B ARW53-084530S ARW53-184730B ARW53-084730S ARW53-284730 ARW53-185030B ARW53-085030S ARW53-285030 ARW53-985030BLU
15" x 8" 4" ARW53-184540B ARW53-084540S ARW53-184740B ARW53-084740S ARW53-284740 ARW53-185040B ARW53-085040S ARW53-285040 ARW53-985040BLU

Series 53 Beadlock
Standard wheels weigh 26 lbs.; Wide 5 wheels weigh 24 lbs.
4-3/4" Bolt Circle 5" Bolt Circle Wide 5
Wheel Back
Size Spacing Black Silver Black Silver Black Silver
15" x 10" 2" ARW53-104720B ARW53-004720S ARW53-105020B ARW53-005020S ARW53-100520B ARW53-000520S
15" x 10" 3" ARW53-104730B ARW53-004730S ARW53-105030B ARW53-005030S ARW53-100530B ARW53-000530S
15" x 10" 4" ARW53-104740B ARW53-004740S ARW53-105040B ARW53-005040S ARW53-100540B ARW53-000540S
15" x 10" 5" ARW53-104750B — ARW53-105050B ARW53-005050S ARW53-100550B ARW53-000550S Series 53 Beadlock
Wide 5

Series 55 15" 4-Lugs
Series 55, 15" wheels are now available
in 4 x 100mm or 4 x 115mm bolt circle. Outer Beadlock Rings
Wheels combine HSLA center discs, knife- Replacement outer rings are for Aero
edged bead humps, maximum bead seats, beadlock wheels. Offered in yellow or
and a low run-out. Black only. chrome plated steel, or gold anodized
100mm 115mm aluminum.
Bolt Circle Bolt Circle
Wheel Back Part No. Description
Size Spacing Black Black ARW54-500002 15" Yellow Outer Beadlock Ring, Steel
15" x 7" 3-1/2" ARW55-174035 — ARW54-500004 15" Chrome Outer Beadlock Ring, Steel
15" x 7" 4" ARW55-184040 ARW55-184540
ARW54-500020 13" Chrome Outer Beadlock Ring, Steel
Rim Wrench ARW54-500005
(QJLQHHUHG VSHFL¿FDOO\
for straightening the outer Beadlock Kit
edges of a damaged wheel without cracking or creasing it. ARW54-500007
Kit includes weld-on inner ring with
Left Rear Inner Mud Covers mud cover tabs, yellow outer ring, bolt
Keep mud from building up inside left rear kit, and mud cover installation hard-
ZKHHO 6SXQ DOXPLQXP FRYHUV ¿W EHWZHHQ ware.
the wheel and hub and attach to any Aero Part No. Description
15" standard 5-lug or wide 5 wheels. ARW54-500003 Replacement Bead Lock Bolt Kit
Part No. Description ARWP905504 Replacement Spring For Beadlock Ring
ARW54-500009 Universal Fit, 2" Offset
ARW54-500010 Universal Fit, 3" Offset
ARW54-500011 Universal Fit, 4" Offset
ARW54-500014 Wide 5, 4" Offset
