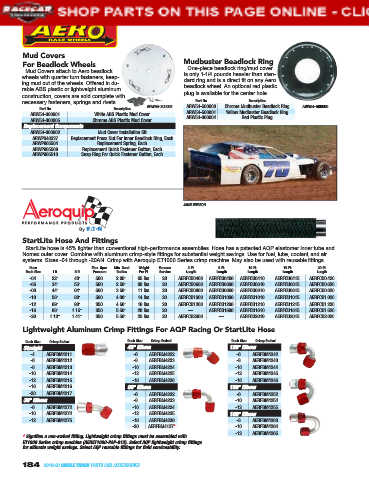

Page 188 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

Mud Covers
For Beadlock Wheels Mudbuster Beadlock Ring
Mud Covers attach to Aero beadlock One-piece beadlock ring/mud cover
wheels with quarter turn fasteners, keep- is only 1-1/4 pounds heavier than stan-
ing mud out of the wheels. Offered in du- GDUG ULQJ DQG LV D GLUHFW ¿W RQ DQ\ $HUR
rable ABS plastic or lightweight aluminum beadlock wheel. An optional red plastic
construction, covers are sold complete with plug is available for the center hole.
necessary fasteners, springs and rivets. Part No. Description
ARW54-300001 ARW54-500000 Chrome Mudbuster Beadlock Ring ARW54-500000
Part No. Description ARW54-500001 Yellow Mudbuster Beadlock Ring
ARW54-300001 White ABS Plastic Mud Cover ARW54-300004 Red Plastic Plug
ARW54-300005 Chrome ABS Plastic Mud Cover
Replacement Components
ARW54-300002 Mud Cover Installation Kit
ARWP048337 Replacement Press Nut For Inner Beadlock Ring, Each
ARWP905504 Replacement Spring, Each
ARWP905509 Replacement Quick Fastener Button, Each
ARWP905510 Snap Ring For Quick Fastener Button, Each

JAMIE IVERSON

StartLite Hose And Fittings
6WDUW/LWH KRVH LV OLJKWHU WKDQ FRQYHQWLRQDO KLJK SHUIRUPDQFH DVVHPEOLHV +RVH KDV D SDWHQWHG $43 HODVWRPHU LQQHU WXEH DQG
1RPH[ RXWHU FRYHU &RPELQH ZLWK DOXPLQXP FULPS VW\OH ¿WWLQJV IRU VXEVWDQWLDO ZHLJKW VDYLQJV 8VH IRU IXHO OXEH FRRODQW DQG DLU
V\VWHPV 6L]HV WKURXJK $1 &ULPS ZLWK $HURTXLS (7 6HULHV FULPS PDFKLQH 0D\ DOVR EH XVHG ZLWK UHXVDEOH ¿WWLQJV
Hose Max. Oper. Min. Bend Weight Vacuum 3 Ft. 6 Ft. 10 Ft. 15 Ft. 20 Ft.
Dash Size I.D. O.D. Pressure Radius Per Ft. Service Length Length Length Length Length
-04 .22" .43" 500 2.00" .05 lbs. 20 AERFCU0403 AERFCU0406 AERFCU0410 AERFCU0415 AERFCU0420
-06 .34" .55" 500 2.50" .08 lbs. 20 AERFCU0603 AERFCU0606 AERFCU0610 AERFCU0615 AERFCU0620
-08 .44" .64" 500 3.50" .11 lbs. 20 AERFCU0803 AERFCU0806 AERFCU0810 AERFCU0815 AERFCU0820
-10 .56" .80" 500 4.00" .14 lbs. 20 AERFCU1003 AERFCU1006 AERFCU1010 AERFCU1015 AERFCU1020
-12 .69" .93" 350 4.50" .16 lbs. 20 AERFCU1203 AERFCU1206 AERFCU1210 AERFCU1215 AERFCU1220
-16 .88" 1.15" 350 5.50" .20 lbs. 20 — AERFCU1606 AERFCU1610 AERFCU1615 AERFCU1620
-20 1.13" 1.41" 350 5.50" .25 lbs. 20 AERFCU2003 — AERFCU2010 AERFCU2015 AERFCU2020

Lightweight Aluminum Crimp Fittings For AQP Racing Or StartLite Hose
Dash Size Crimp Swivel Dash Size Crimp Swivel Dash Size Crimp Swivel
Straight 45° Elbow 120° Elbow
-4 AERFBM4211 -6 AERFBM4222 -6 AERFBM4242
-6 AERFBM4212 -8 AERFBM4223 -8 AERFBM4243
-8 AERFBM4213 -10 AERFBM4224 -10 AERFBM4244
-10 AERFBM4214 -12 AERFBM4225 -12 AERFBM4245
-12 AERFBM4215 -16 AERFBM4226 -16 AERFBM4246
-16 AERFBM4216 90° Elbow 150° Elbow
-20 AERFBM4217 -6 AERFBM4232 -6 AERFBM4252
30° Elbow -8 AERFBM4233 -10 AERFBM4254
-6 AERFBM4272 -10 AERFBM4234 -12 AERFBM4255
-10 AERFBM4274 -12 AERFBM4235 180° Elbow
-12 AERFBM4275 -16 AERFBM4236 -8 AERFBM4263
-20 AERFBM4137* -10 AERFBM4264
-12 AERFBM4265
* Signifies a non-swivel fitting. Lightweight crimp fittings must be assembled with
ET1000 Series crimp machine (AERET1000-PAP-013). Select AQP lightweight crimp fittings
for ultimate weight savings. Select AQP reusable fittings for field serviceability.

184 2019-20 CIRCLE TRACK PARTS AND ACCESSORIES
