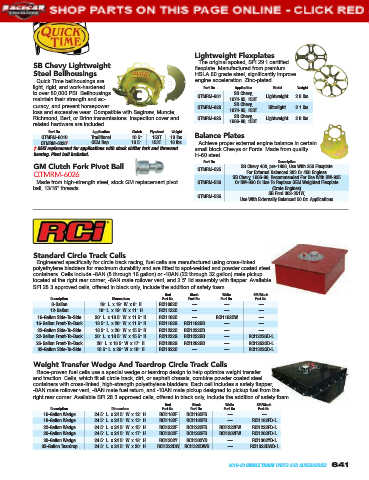

Page 645 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

Lightweight Flexplates
7KH RULJLQDO VSRNHG 6), FHUWL¿HG
SB Chevy Lightweight ÀH[SODWH 0DQXIDFWXUHG IURP SUHPLXP
Steel Bellhousings +6/$ JUDGH VWHHO VLJQL¿FDQWO\ LPSURYH
Quick Time bellhousings are engine acceleration. Zinc-plated.
light, rigid, and work-hardened Part No. Application Model Weight
to over 80,000 PSI. Bellhousings QTMRM-901 SB Chevy, Lightweight 2.8 lbs.
maintain their strength and ac- 1974-85, 153T
curacy, and prevent horsepower QTMRM-920 SB Chevy, Ultralight 2.1 lbs.
loss and excessive wear. Compatible with Saginaw, Muncie, 1974-85, 153T
SB Chevy,
Richmond, Bert, or Brinn transmissions. Inspection cover and QTMRM-925 1986-96, 153T Lightweight 2.8 lbs.
related hardware are included.
Part No. Application Clutch Flywheel Weight
QTMRM-6010 Traditional 10.5" 153T 18 lbs. Balance Plates
QTMRM-6020 † OEM Rep. 10.5" 153T 18 lbs. Achieve proper external engine balance in certain
† OEM replacement for applications with stock shifter fork and throwout small block Chevys or Fords. Made from quality
bearing. Pivot ball included. H-60 steel.
Part No. Description
GM Clutch Fork Pivot Ball QTMRM-525 SB Chevy 400, pre-1986, Use With 350 Flexplate
For External Balanced 383 Or 400 Engines
QTMRM-6026 SB Chevy, 1986-96, Recommended For Use With RM-925
Made from high-strength steel, stock GM replacement pivot QTMRM-530 Or RM-930 Or Use To Replace OEM Weighted Flexplate
ball, 13/16" threads. (Crate Engines)
QTMRM-536 SB Ford 302-351W,
Use With Externally Balanced 50 Oz. Applications

Standard Circle Track Cells
(QJLQHHUHG VSHFL¿FDOO\ IRU FLUFOH WUDFN UDFLQJ IXHO FHOOV DUH PDQXIDFWXUHG XVLQJ FURVV OLQNHG
SRO\HWK\OHQH EODGGHUV IRU PD[LPXP GXUDELOLW\ DQG DUH ¿WWHG WR VSRW ZHOGHG DQG SRZGHU FRDWHG VWHHO
containers. Cells include -8AN (8 through 16 gallon) or -10AN (22 through 32 gallon) male pickup
ORFDWHG DW WKH ULJKW UHDU FRUQHU $1 PDOH UROORYHU YHQW DQG OLG DVVHPEO\ ZLWK ÀDSSHU $YDLODEOH
SFI 28.3 approved cells, offered in black only, include the addition of safety foam.
Red Black White SFI/Black
Description Dimensions Part No. Part No. Part No. Part No.
8-Gallon 19" L. x 19" W. x 8" H. RCI1082C — — —
12-Gallon 19" L. x 19" W. x 11" H. RCI1122C — — —
16-Gallon Side-To-Side 26" L. x 18.5" W. x 11.5" H. RCI1162C — RCI1162CW —
16-Gallon Front-To-Back 18.5" L. x 26" W. x 11.5" H. RCI1162G RCI1162GD — —
22-Gallon Side-To-Side 18.5" L. x 26" W. x 15.5" H. RCI1222C RCI1222CD — —
22-Gallon Front-To-Back 26" L. x 18.5" W. x 15.5" H. RCI1222G RCI1222GD — RCI1222GD-L
26-Gallon Front-To-Back 26" L. x 18.5" W. x 17" H. RCI1262G RCI1262GD — RCI1262GD-L
32-Gallon Side-To-Side 18.5" L. x 26" W. x 18" H. RCI1322C — — RCI1322GD-L

Weight Transfer Wedge And Teardrop Circle Track Cells
Race-proven fuel cells use a special wedge or teardrop design to help optimize weight transfer
DQG WUDFWLRQ &HOOV ZKLFK ¿W DOO FLUFOH WUDFN GLUW RU DVSKDOW FKDVVLV FRPELQH SRZGHU FRDWHG VWHHO
FRQWDLQHUV ZLWK FURVV OLQNHG KLJK VWUHQJWK SRO\HWK\OHQH EODGGHUV (DFK FHOO LQFOXGHV D VDIHW\ ÀDSSHU
-8AN male rollover vent, -8AN male fuel return, and -10AN male pickup designed to pickup fuel from the
right rear corner. Available SFI 28.3 approved cells, offered in black only, include the addition of safety foam.
Red Black White SFI/Black
Description Dimensions Part No. Part No. Part No. Part No.
16-Gallon Wedge 24.5" L. x 24.5" W. x 12" H. RCI1162F RCI1162FD — —
18-Gallon Wedge 24.5" L. x 24.5" W. x 13" H. RCI1182F RCI1182FD — RCI1182FD-L
22-Gallon Wedge 24.5" L. x 24.5" W. x 15" H. RCI1222F RCI1222FD RCI1222FW RCI1222FD-L
26-Gallon Wedge 24.5" L. x 24.5" W. x 17" H. RCI1262F RCI1262FD RCI1262FW RCI1262FD-L
30-Gallon Wedge 24.5" L. x 24.5" W. x 18" H. RCI1302Y RCI1302YD — RCI1302YD-L
32-Gallon Teardrop 24.5" L. x 24.5" W. x 20" H. RCI1322DW RCI1322DWD — RCI1322DWD-L

2019-20 CIRCLE TRACK PARTS AND ACCESSORIES 641
