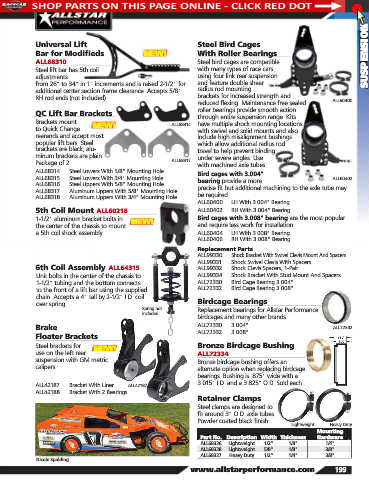

Page 201 - 2018 Allstar Performance Parts and Equipment Catalog

Universal Lift Steel Bird Cages
Bar for Modifieds NEW! With Roller Bearings SUSPENSION
ALL68310 Steel bird cages are compatible
Steel lift bar has 5th coil with many types of race cars
adjustments using four link rear suspension
from 26" to 34" in 1" increments and is raised 2-1/2" for and feature double shear
additional center section frame clearance. Accepts 5/8" radius rod mounting
RH rod ends (not included). brackets for increased strength and ALL60400
reduced flexing. Maintenance free sealed
roller bearings provide smooth action
QC Lift Bar Brackets through entire suspension range. Kits
Brackets mount have multiple shock mounting locations
to Quick Change NEW! ALL68314 with swivel and solid mounts and also
rearends and accept most include high misalignment bushings
popular lift bars. Steel which allow additional radius rod
brackets are black, alu- travel to help prevent binding
minum brackets are plain. under severe angles. Use
Package of 2. ALL68317 with machined axle tubes.
ALL68314 ..... Steel Lowers With 5/8" Mounting Hole Bird cages with 3.004"
ALL68315 ..... Steel Lowers With 3/4" Mounting Hole bearing provide a more ALL60402
ALL68316 ..... Steel Uppers With 5/8" Mounting Hole precise fit but additional machining to the axle tube may
ALL68317 ..... Aluminum Uppers With 5/8" Mounting Hole
ALL68318 ..... Aluminum Uppers With 3/4" Mounting Hole be required.
ALL60400 .... LH With 3.004" Bearing
5th Coil Mount ALL60218 ALL60402 ..... RH With 3.004" Bearing
1-1/2" aluminum bracket bolts in NEW! Bird cages with 3.008" bearing are the most popular
the center of the chassis to mount and require less work for installation.
a 5th coil shock assembly. ALL60404 .... LH With 3.008" Bearing
ALL60406 .... RH With 3.008" Bearing
Replacement Parts
ALL99330 ..... Shock Bracket With Swivel Clevis Mount And Spacers
ALL99331 ..... Shock Swivel Clevis With Spacers
6th Coil Assembly ALL64315 ALL99332 ..... Shock Clevis Spacers, 1-Pair
Unit bolts in the center of the chassis to ALL99334 ..... Shock Bracket With Stud Mount And Spacers
1-1/2" tubing and the bottom connects ALL72330 ..... Bird Cage Bearing 3.004"
to the front of a lift bar using the supplied ALL72332 ..... Bird Cage Bearing 3.008"
chain. Accepts a 4" tall by 2-1/2" I.D. coil
over spring. Birdcage Bearings
Spring not Replacement bearings for Allstar Performance
included.
birdcages and many other brands.
Brake ALL72330 ..... 3.004" ALL72332
ALL72332 ..... 3.008"
Floater Brackets
Steel brackets for NEW! Bronze Birdcage Bushing
use on the left rear ALL72334
suspension with GM metric Bronze birdcage bushing offers an
calipers.
alternate option when replacing birdcage
bearings. Bushing is .875" wide with a
ALL42187 ..... Bracket With Liner ALL42187 3.015" I.D. and a 3.825" O.D. Sold each.
ALL42188 ..... Bracket With 2 Bearings
Retainer Clamps
ALL42188 Steel clamps are designed to
fit around 3" O.D. axle tubes.
Powder coated black finish.
Lightweight Heavy Duty
Mounting
Part No. Description Width Thickness Hardware
ALL68326 Lightweight 1/2" 1/8" 1/4"
ALL68328 Lightweight 5/8" 1/8" 3/8"
ALL68327 Heavy Duty 1/2" 1/4" 3/8"
Nicole Spalding
www.allstarperformance.com 199
