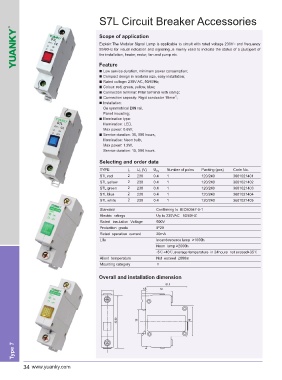

S7L Circuit Breaker Accessories

Scope of application
Explain:The Modular Signal Lamp is applicable to circuit with rated voltage 230V~ and frequency
50/60Hz for visual indication and signaling.,is mainly used to indicate the status of a (sub)part of
the installation, heater, motor, fan and pump etc.

Feature
■ Low service duration, minimum power consumption;
■ Compact design in modular size, easy installation;
■ Rated voltage: 230V AC, 50/60Hz;
■ Colour: red, green, yellow, blue;
■ Connection terminal: Pillar terminal with clamp;
2
■ Connection capacity: Rigid conductor 10mm ;
■ Installation:
On symmetrical DIN rail,
Panel mounting;
■ Illumination type:
Illumination: LED,
Max power: 0.6W;
■ Service duration: 30, 000 hours,
Illumination: Neon bulb,
Max power: 1.2W,
Service duration: 15, 000 hours.

Selecting and order data
TYPE l n U n (V) U lzg Number of poles Packing (pcs) Code No.
S7L red 2 230 0.4 1 120/240 3601021401
S7L yellow 2 230 0.4 1 120/240 3601021402
S7L green 2 230 0.4 1 120/240 3601021403
S7L blue 2 230 0.4 1 120/240 3601021404
S7L white 2 230 0.4 1 120/240 3601021405
Standard Confirming to IEC60947-5-1
Electric ratings Up to 230VAC 50/60HZ
Rated insulation Voltage 500V
Protection grade IP20
Rated operation current 20mA
Life Incandescence lamp ≥1000h
Neon lamp ≥2000h
-5℃+40℃,average temperature in 24hours not exceed+35℃
Alient temperature Not exceed 2000m
Mounting category Ⅱ

Overall and installation dimension

Type 7
