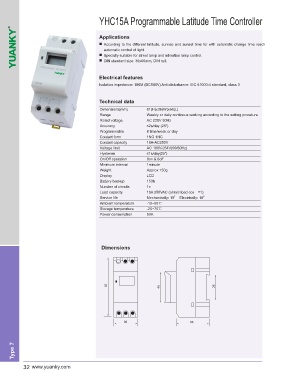

YHC15A Programmable Latitude Time Controller



                                            Applications

                                            ■  According to the different latitude, sunrise and sunset time for with automatic change time reach
                                              automatic control of light.
                                            ■  Specially suitable for street lamp and advertise lamp control.
                                            ■  DIN standard size: 36x60mm, DIN rail.


                                            Electrical features
                                            Isolation impedance: 100M (DC500V) Anti-disturbance: IEC 61000-4 standard, class 3



                                            Technical data
                                            Dimensions(mm)       81(H)x36(W)x66(L)
                                            Range                Weekly or daily continous working according to the setting proceture
                                            Rated voltage        AC 220V 50Hz
                                                                         o
                                            Accuracy             ≤2s/day (25 )
                                            Programmable         8 time/week or day
                                            Contact form         1NO 1NC
                                            Contact capacity     16A-AC250V
                                            Voltage limit        AC 180V-264V(50/60Hz)
                                                                         o
                                            Hystereis            ≤1s/day(25 )
                                            On/Off operation     8on & 8off
                                            Minimum interval     1minute
                                            Weight               Approx 150g
                                            Display              LCD
                                            Battery backup       150h
                                            Number of circuits   1c
                                            Load capacity        16A 250VAC (ohmic load cos��=1)
                                                                             7
                                            Service life         Mechanically: 10     Electrically: 10 5
                                            Ambient temperature  -10~55℃
                                            Storage temperature  -20~70℃
                                            Power consumption    5VA






                                             Dimensions

























       Type 7
