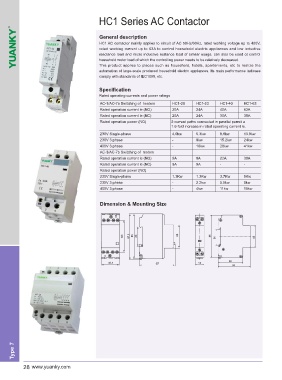

HC1 Series AC Contactor

General description
HC1 AC contactor mainly applies to circuit of AC 50Hz/60Hz, rated working voltage up to 400V,
rated working current up to 63A to control household electric appliances and low inductive
reactance load and micro inductive reatance load of similar usage, can also be used ot control
household motor load of which the controlling power needs to be relatively decreased.
This product applies to places such as household, hotels, apartements, etc to realize the
automation of large-scale produced household electric appliances. Its main performance indicaes
comply with standards of IEC1095, etc.

Specification
Rated operating currents and power ratings
AC-1/AC-7a Switching of heaters HC1-20 HC1-23 HC1-40 HC1-63
Rated operation current le (NO) 20A 24A 40A 63A
Rated operation current le (NC) 20A 24A 30A 30A
Rated operation power (NO) 2 current paths connected in parallel permit a
1.6-fold increase in rated operating current le.
230V Single-phase 4.0kw 5.3kw 8.8kw 13.8kw
230V 3 phase - 9kw 15.2kw 24kw
400V 3 phase - 16kw 28kw 41kw
AC-3/AC-7b Switching of motors
Rated operation current le (NO) 9A 9A 22A 30A
Rated operation current le (NC) 9A 9A - -
Rated operation power (NO)
230V Single-phase 1.3Kw 1.3Kw 3.7Kw 5Kw
230V 3 phase - 2.2kw 5.5kw 8kw
400V 3 phase - 4kw 11kw 15kw

Dimension & Mounting Size
