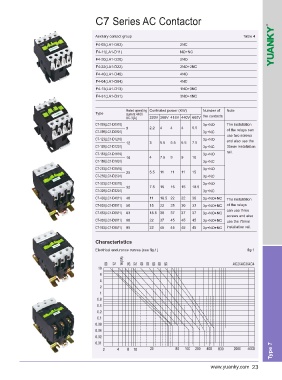

C7 Series AC Contactor

Auxilary contact group Table 4

F4-02(LA1-D02) 2NC
F4-11(LA1-D11) NO+NC
F4-20(LA1-D20) 2NO
F4-22(LA1-D22) 2NO+2NC
F4-40(LA1-D40) 4NO
F4-04(LA1-D04) 4NC
F4-13(LA1-D13) 1NO+3NC
F4-31(LA1-D31) 3NO+1NC

Rated operating Controlled power (KW) Number of Note
Type current 440V
AC-3(A) 220V 380V 415V 440V 660V the contacts
C7-093(LC1-D0910) 3p+NO The installation
9 2.2 4 4 4 5.5
C7-099(LC1-D0901) 3p+NC of the relays can
use two screws
C7-123(LC1-D1210) 3p+NO and also use the
12 3 5.5 5.5 5.5 7.5
C7-129(LC1-D1201) 3p+NC 35mm installation
C7-183(LC1-D1810) 3p+NO rail.
16 4 7.5 9 9 10
C7-189(LC1-D1801) 3p+NC
C7-253(LC1-D2510) 3p+NO
25 5.5 11 11 11 15
C7-259(LC1-D2501) 3p+NC
C7-323(LC1-D3210) 3p+NO
32 7.5 15 15 15 18.5
C7-329(LC1-D3201) 3p+NC
C7-403(LC1-D4011) 40 11 18.5 22 22 30 3p+NO+NC The installation
C7-503(LC1-D5011) 50 15 22 25 30 33 3p+NO+NC of the relays
can use three
C7-653(LC1-D6511) 63 18.5 30 37 37 37 3p+NO+NC
screws and also
C7-803(LC1-D8011) 80 22 37 45 45 45 3p+NO+NC use the 75mm
C7-953(LC1-D9511) 95 22 45 45 45 45 3p+NO+NC installation rail.

Characteristics
Electrical endurance curves (see fig.1) fig.1

Type 7

www.yuanky.com 23
