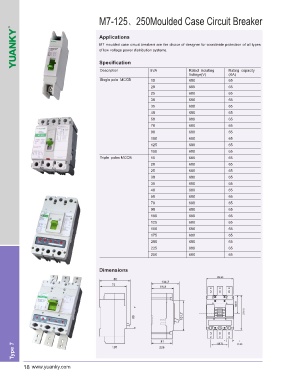

M7-125、250Moulded Case Circuit Breaker

Applications
M7 moulded case circuit breakers are the choice of designer for coordinate protection of all types
of low voltage power distribution systems.

Specification
Description In/A Rated isolating Rating capacity
Voltage(V) (KA)
Single pole MCCB 15 600 65
20 600 65
25 600 65
30 600 65
35 600 65
40 600 65
50 600 65
70 600 65
90 600 65
100 600 65
125 600 65
150 600 65
Triple poles MCCB 15 600 65
20 600 65
25 600 65
30 600 65
35 600 65
40 600 65
50 600 65
70 600 65
90 600 65
100 600 65
125 600 65
150 600 65
175 600 65
200 600 65
225 600 65
250 600 65

Dimensions

Type 7
