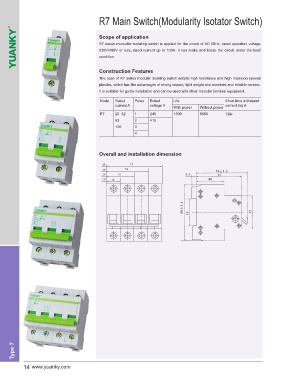

R7 Main Switch(Modularity Isotator Switch)
Scope of application
R7 series modudlar isotating switch is applied for the circuit of AC 50Hz, rated operation voltage
230V/400V or less, rated current up to 100A. It can make and break the circuit under the load
condition.
Construction Features
The case of R7 series modular isolating switch adopts high resistance and high intension special
plastics, which has the advantages of strong impact, light weight and excellent and reliable contact.
It is suitable for guide installation and can be used with other modular terminal equipment.
Mode Rated Poles Rated Life Short-time withstand
current A voltage V With power Without power current (Is) A
R7 20 32 1 240 1500 8500 12Ie
63 2 415
100 3
4
Overall and installation dimension
Type 7
