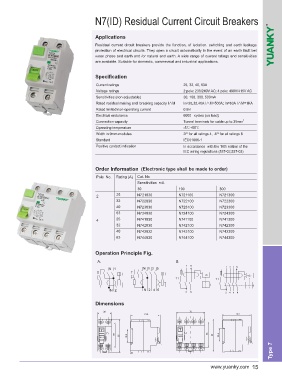

N7(ID) Residual Current Circuit Breakers

Applications

Residual current circuit breakers provide the function, of isolation. switching and earth leakage
protection of electrical circuits. They open a circuit automatically in the event of an earth fault bet
ween phase and earth and /or natural and earth. A wide range of current ratings and sensitivities
are available. Suitable for domestic, commevical and industrial applications.

Specification
Current ratings 25, 32, 40, 63A
Voltage ratings 2 pole: 230/240V AC; 4 pole: 400V/415V AC
Sensitivities (non-adjustable) 30, 100, 300, 500mA
Rated residual making and breaking capacity I△M� In=25,32,40A I△M=500A; In=63A I△M=1KA
Rated limited non-operating current 0.5In
Electrical endurance 6000 cycles (on load)
Connection capacity Tunnel terminals for cable up to 35mm 2
Operating temperature -5℃+55℃
Width in 9mm modules 2P for all ratings 4, 4P for all ratings 8
Standard IEC61008-1
Positive contact indication In accordance with the 16th edition of the
IEC wiring regulations (537-02,537-03)

Order Information (Electronic type shall be made to order)
Pole No. Rating (A) Cat. No
Sensitivities mA
30 100 300
2 25 N721030 N721100 N721300
32 N722030 N722100 N722300
40 N723030 N723100 N723300
63 N724030 N724100 N724300
4 25 N741030 N741100 N741300
32 N742030 N742100 N742300
40 N743032 N743100 N743300
63 N744030 N744100 N744300

Operation Principle Fig.
A. B.

Dimensions

Type 7
