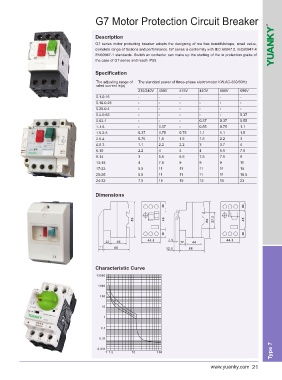

G7 Motor Protection Circuit Breaker

Description
G7 series motor protecting breaker adopts the designing of ma has brautifulshape, small value,
complete range of factions and performance. G7 series is conformity with IEC 60947.2, IEC60947-4
EN60947-1 standards. Switch an contactor can make up the starting of the in protection grade of
the case of G7 series and reach IP55.

Specification

The adjusting range of The standard power of three-phase electromotor KW.AC-350/60Hz
rated current le(a)
230/240V 400V 415V 440V 500V 690V
0.1-0.16 - - - - - -
0.16-0.25 - - - - - -
0.25-0.4 - - - - - -
0.4-0.63 - - - - - 0.37
0.63-1 - - - 0.37 0.37 0.55
1-1.6 - 0.37 - 0.55 0.75 1.1
1.6-2.5 0.37 0.75 0.75 1.1 1.1 1.5
2.5-4 0.75 1.5 1.5 1.5 2.2 3
4-6.3 1.1 2.2 2.2 3 3.7 4
6-10 2.2 4 4 4 5.5 7.5
9-14 3 5.5 5.5 7.5 7.5 9
13-18 4 7.5 9 9 9 11
17-23 5.5 11 11 11 11 15
20-25 5.5 11 11 11 11 18.5
24-32 7.5 15 15 15 15 23

Dimensions

Characteristic Curve

Type 7

www.yuanky.com 21
