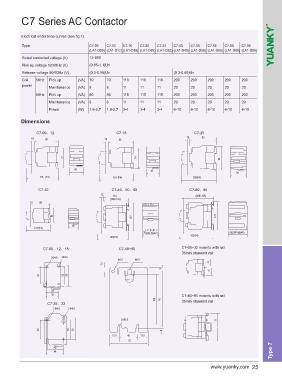

C7 Series AC Contactor

Electrical endurance curves (see fig.1)

Type C7-09 C7-12 C7-16 C7-25 C7-32 C7-40 C7-50 C7-65 C7-80 C7-95
(LA1-D09) (LA1-D12) (LA1-D16) (LA1-D25) (LA1-D32) (LA1-D40) (LA1-D50) (LA1-D65) (LA1-D80) (LA1-D95)
Rated controlled voltage (V) 12-660
Pick up voltage 50/60Hz (V) (0.85-1.1)Un
Release voltage 50/60Hz (V) (0.3-0.55)Un (0.3-0.60)Un
Coil 50Hz Pick up (VA) 70 70 110 110 110 200 200 200 200 200
power Maintenance (VA) 8 8 11 11 11 20 20 20 20 20

60Hz Pick up (VA) 80 80 115 115 115 200 200 200 200 200
Maintenance (VA) 8 8 11 11 11 20 20 20 20 20
Power (W) 1.8-2.7 1.8-2.7 3-4 3-4 3-4 6-10 6-10 6-10 6-10 6-10

Dimensions

C7-09、12 C7-18 C7-25

C7-32 C7-40、50、65 C7-80、95

C7-09、12、18 C7-40~95 C7-09~32 mounts with rail
35mm standard rail

C7-40~95 mounts with rail
35mm standard rail
C7-25、32

Type 7

www.yuanky.com 25
