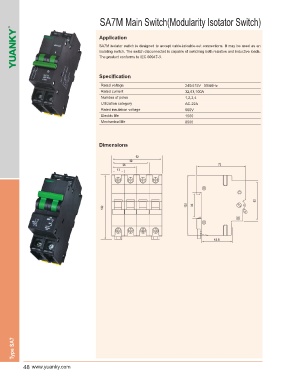

SA7M Main Switch(Modularity Isotator Switch)
Application
SA7M isolator switch is designed to accept cable-in/cable-out connections. It may be used as an
isolating switch. The switch disconnected is capable of switching both resistive and inductive loads.
The product conforms to IEC 60947-3.
Specification
Rated voltage 240/415V 50/60Hz
Rated current 32,63,100A
Number of poles 1,2,3,4
Utilization category AC-22A
Rated insulation voltage 500V
Electric life 1500
Mechanical life 8500
Dimensions
Type SA7
